Front Side Door Window Weatherstrip Replacement

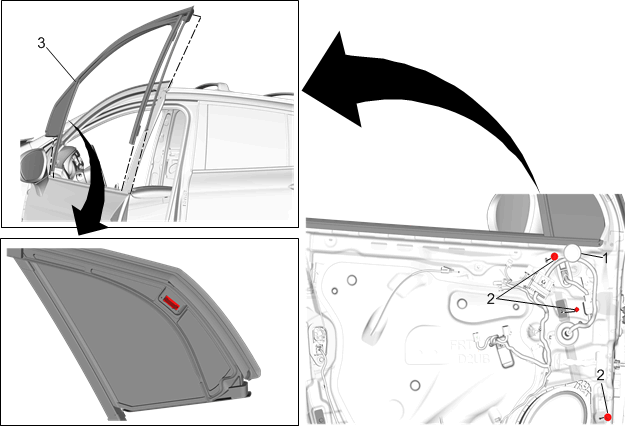

Fig 1: Front Side Door Window Weatherstrip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Place the window in the full down position. Front Side Door Window Frame Rear Applique Replacement Front Side Door Window Garnish Molding Replacement
1	Front Side Door Window Channel Lower Adjuster Access Hole Plug
2	Front Side Door Window Channel Retainer Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
3	Front Side Door Window Weatherstrip Procedure Using the appropriate tool, release the front clip and pull weatherstrip outward from the frame. Pull the weatherstrip upward, releasing the weatherstrip from the front and rear channel. Insert the weatherstrip downward in the front and rear channel until fully seated. Position the window weatherstrip in both corners of the frame, working the weatherstrip around the frame. Carefully move the regulator upward for short slow intervals, while ensuring that the window remains in the channels. NOTE: The upper rear corner bolt is removed as part of the front side door window frame rear applique. The front side door front channel is part of the front side door window weatherstrip and is serviced as one.
