Rear Side Door Window Frame Front Applique Replacement

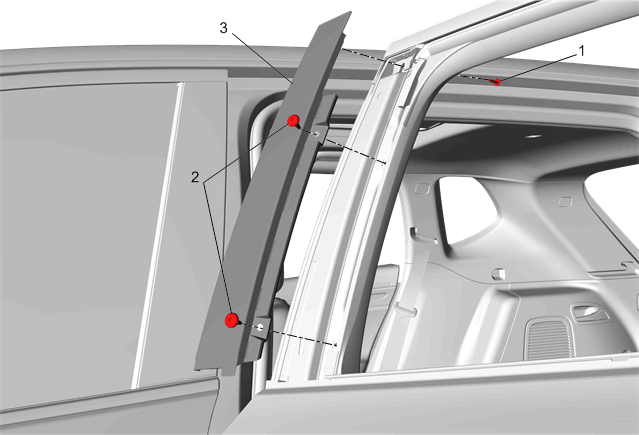

Fig 1: Rear Side Door Window Frame Front Applique

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Window Frame Front Applique Bolt CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Rear Side Door Window Frame Front Applique Bolt (Qty: 2) Procedure  Repositionthe inner part of the rear side door window weatherstrip to gain access to the 2 bolts. Tighten  2.5 N.m (22 lb in)
3	Rear Side Door Window Frame Front Applique
