Rear Side Door Window Regulator Replacement

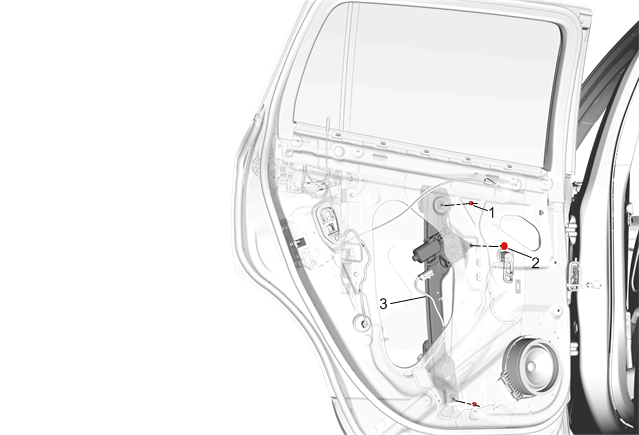

Fig 1: Rear Side Door Window Regulator
GM3816725Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Express Window Down Warning .

Preliminary Procedures

  1. Rear Side Door Armrest Pull Cup Bracket Replacement
  2. Remove the water deflector.
  3. Using the appropriate tool, push the rear side door window sash clip outward, while pulling up on window to release the window from the sash clip.
  4. After detaching window from the regulator, manually move the window to the full up position and tape to the frame.
  5. Disconnect the electrical connector.
1 Rear Side Door Window Regulator Nut (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
11 N.m (97 lb in)
2 Rear Side Door Window Regulator Bolt
Tighten
11 N.m (97 lb in)
3 Rear Side Door Window Regulator
Procedure
Transfer components as necessary.
