Rear Side Door Window Replacement

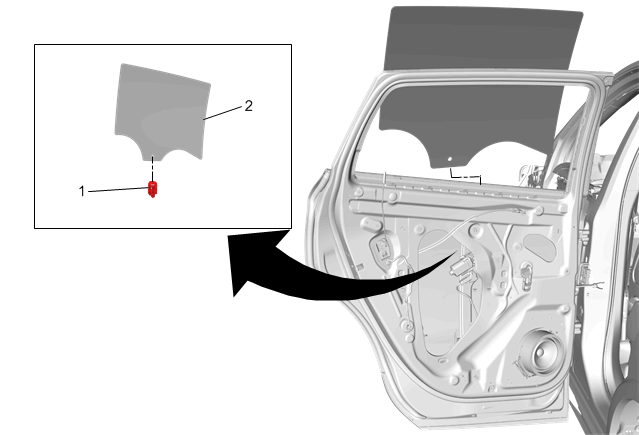

Fig 1: Rear Side Door Window

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Refer to Express Window Down Warning . Preliminary Procedures Apply masking tape to the door frame and applique. Rear Side Door Window Weatherstrip Replacement Remove the water deflector.
1	Rear Side Door Window Regulator Sash Clip Procedure Do not operate the regulator motor without supporting the window. Ensure that the window remains in the guide when operating the regulator motor. Lower the window enough to gain access to the window regulator sash clip. Using the appropriate tool, push the rear side door window sash clip outward, while pulling up on window to release the window from the sash clip. Carefully grasp and tilt the window as you guide the window up and forward. Place the window into the door frame, slide the window downward into the regulator sash clip.
2	Rear Side Door Window

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedures

Rear Side Door Window Regulator Sash Clip

Procedure

Do not operate the regulator motor without supporting the window. Ensure that the window remains in the guide when operating the regulator motor.
Lower the window enough to gain access to the window regulator sash clip.
Using the appropriate tool, push the rear side door window sash clip outward, while pulling up on window to release the window from the sash clip.
Carefully grasp and tilt the window as you guide the window up and forward.
Place the window into the door frame, slide the window downward into the regulator sash clip.

Rear Side Door Window
