Installation Procedure

    Fig 1: BPMV Bracket
    GM3876214Courtesy of GENERAL MOTORS COMPANY
  1. Install BPMV Bracket (1)
    2. Fig 2: BPMV Bolts
    GM3876212Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install BPMV Bolts (1) (Qty: 2) and tighten to 9 N.m (80 lb in)
    3. Fig 3: EBCM/BPMV and Bracket Assembly
    GM3876206Courtesy of GENERAL MOTORS COMPANY
  3. Install EBCM/BPMV and Bracket Assembly (1)
    4. Fig 4: BPMV Bracket Bolt
    GM3876203Courtesy of GENERAL MOTORS COMPANY
  4. Install BPMV Bracket Bolt (1) and tighten to 22 N.m (16 lb ft)
    5. Fig 5: Left Rear Brake Pipe Fitting
    GM3876201Courtesy of GENERAL MOTORS COMPANY
  5. Install Left Rear Brake Pipe Fitting (1) and tighten to 18 N.m (13 lb ft)
    6. Fig 6: Right Front Brake Pipe Fitting
    GM3876199Courtesy of GENERAL MOTORS COMPANY
  6. Install Right Front Brake Pipe Fitting (1) and tighten to 18 N.m (13 lb ft)
    7. Fig 7: Left Front Brake Pipe Fitting
    GM3876196Courtesy of GENERAL MOTORS COMPANY
  7. Install Left Front Brake Pipe Fitting (1) and tighten to 18 N.m (13 lb ft)
    8. Fig 8: Right Rear Brake Pipe Fitting
    GM3876194Courtesy of GENERAL MOTORS COMPANY
  8. Install Right Rear Brake Pipe Fitting (1) and tighten to 18 N.m (13 lb ft)

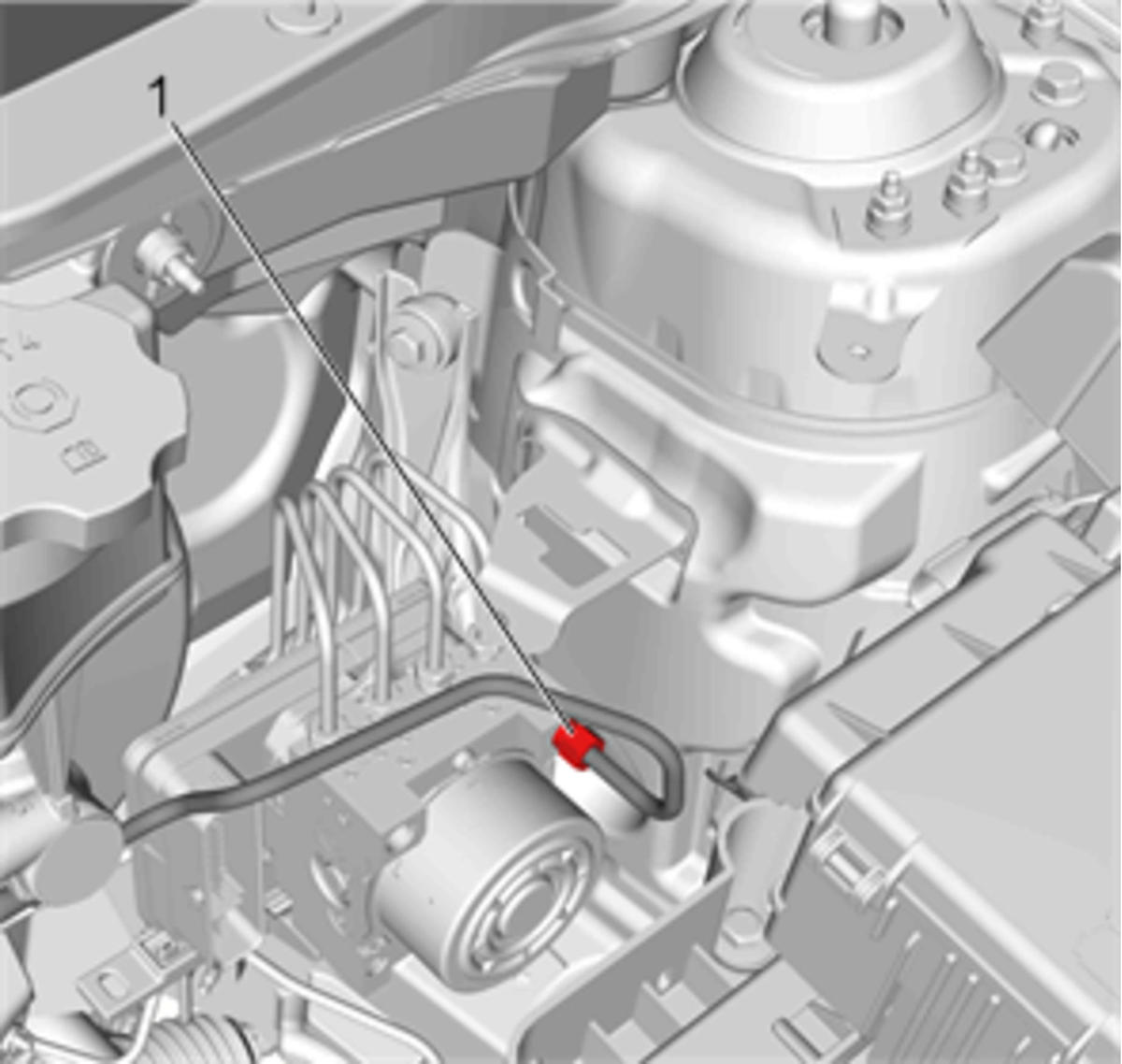

    9. Fig 9: Master Cylinder Primary Brake Pipe Fitting
    GM3876193Courtesy of GENERAL MOTORS COMPANY
  9. Install Master Cylinder Primary Brake Pipe Fitting (1) and tighten to 25 N.m (18 lb ft)

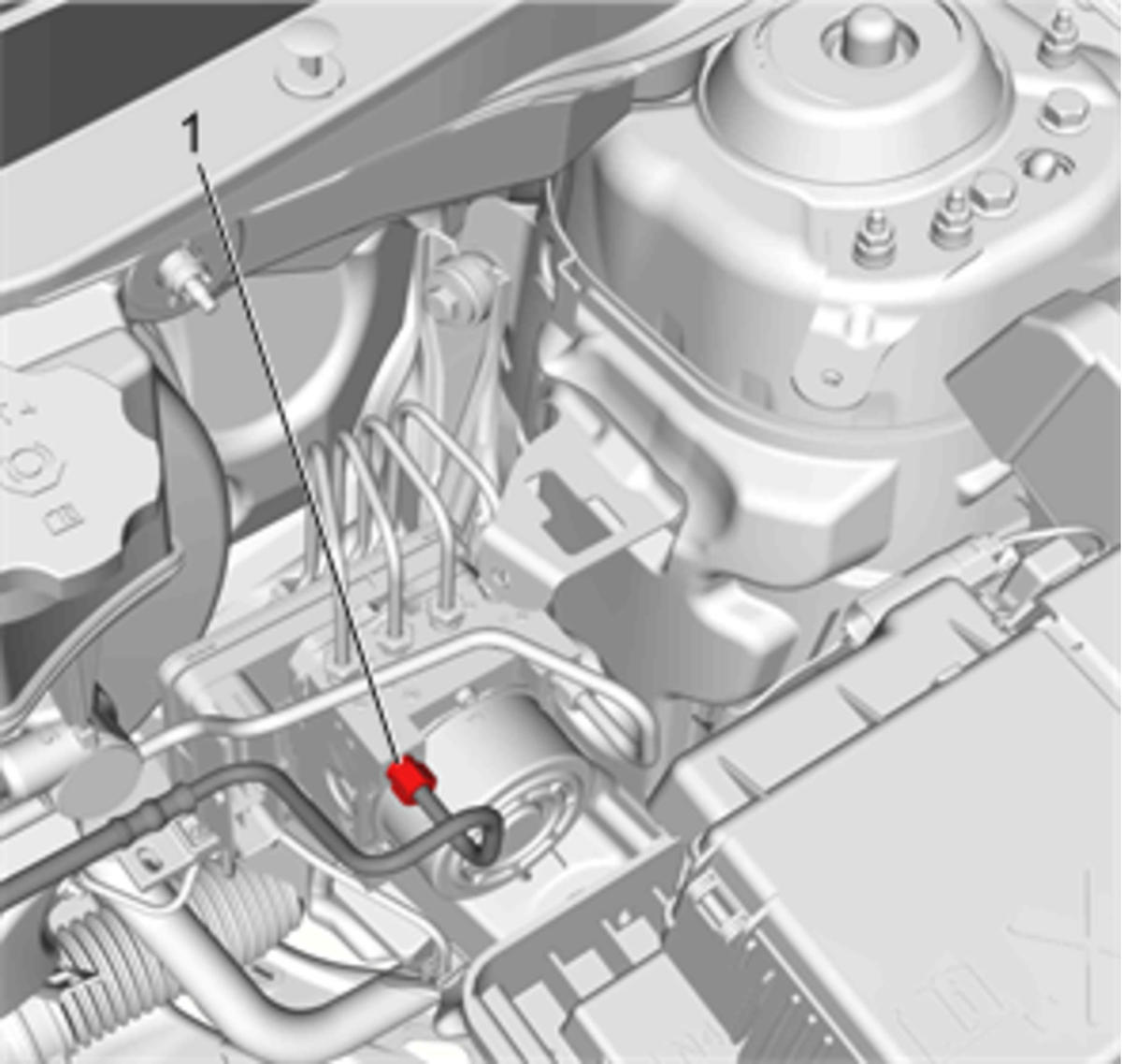

    10. Fig 10: Master Cylinder Secondary Brake Pipe Fitting
    GM3876190Courtesy of GENERAL MOTORS COMPANY
  10. Install Master Cylinder Secondary Brake Pipe Fitting (1) and tighten to 25 N.m (18 lb ft)
  11. Connect the EBCM electrical connector.
  12. Install Radiator Surge Tank. Refer to Radiator Surge Tank Replacement - Install
  13. Bleed the brake system. Refer to Hydraulic Brake System Bleeding (Manual)Hydraulic Brake System Bleeding (Pressure)
  14. Perform the Diagnostic System Check - Vehicle .
  15. Observe the brake pedal feel after performing the diagnostic system check. If the pedal now feels spongy, air may have been in the secondary hydraulic circuit of the brake modulator which may have been introduced into the primary circuit. If the pedal feels spongy, bleed the antilock brake system. Refer to Antilock Brake System Automated Bleed
