Vehicle Stability Control System Switch Replacement

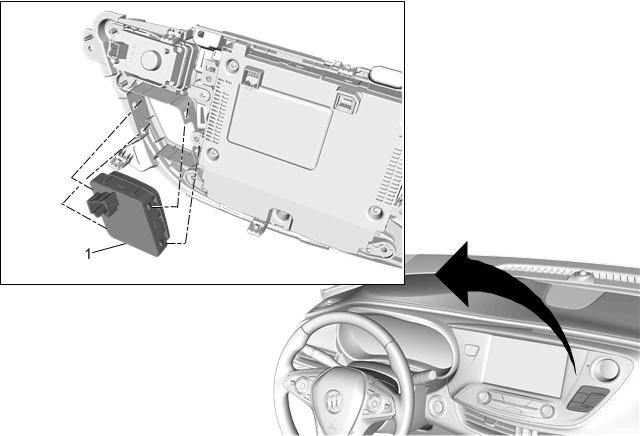

Fig 1: Vehicle Stability Control System Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Instrument Panel Trim Plate. Refer to Instrument Panel Trim Plate Replacement
1	Vehicle Stability Control System Switch Procedure  Use the appropriate tool to depress the tabs and remove the switch from the trim plate.
