Accessory AC and DC Power Control Module Bracket Replacement

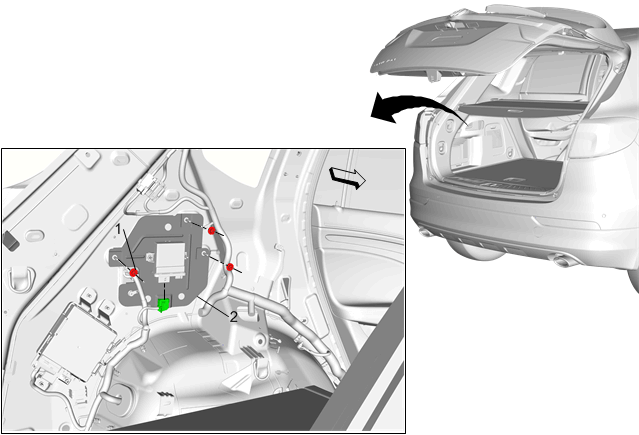

Fig 1: Accessory AC and DC Power Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the quarter lower rear trim panel - left side. Quarter Lower Rear Trim Panel Replacement . Remove the quarter window trim finish panel - left side. Quarter Window Trim Finish Panel Replacement Rear Body Fuse Block Bracket Replacement
1	Accessory AC and DC Power Control Module Bracket Nut (Qty: 3) CAUTION: Fastener Caution . Tighten 9 N.m (80 lb in)
2	Accessory AC and DC Power Control Module Bracket Procedure Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure

Accessory AC and DC Power Control Module Bracket Nut (Qty: 3)

CAUTION:

Tighten
9 N.m (80 lb in)

Accessory AC and DC Power Control Module Bracket

Procedure
