Accessory AC and DC Power Control Module Replacement

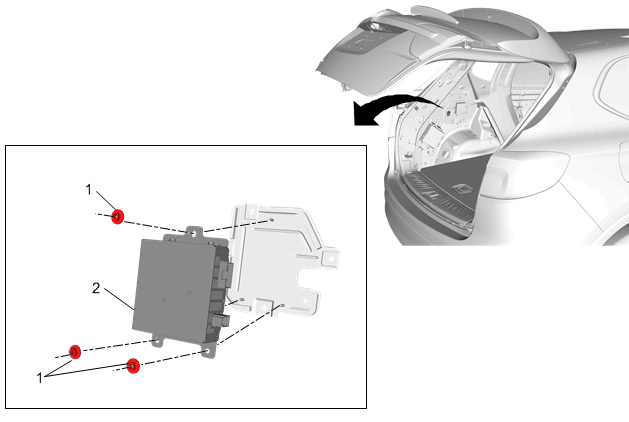

Fig 1: Accessory AC and DC Power Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Accessory AC and DC Power Control Module Bracket Replacement
1	Accessory AC and DC Power Control Module Nut (Qty: 3) CAUTION: Fastener Caution . Tighten  9 N.m (80 lb in)
2	Accessory AC and DC Power Control Module
