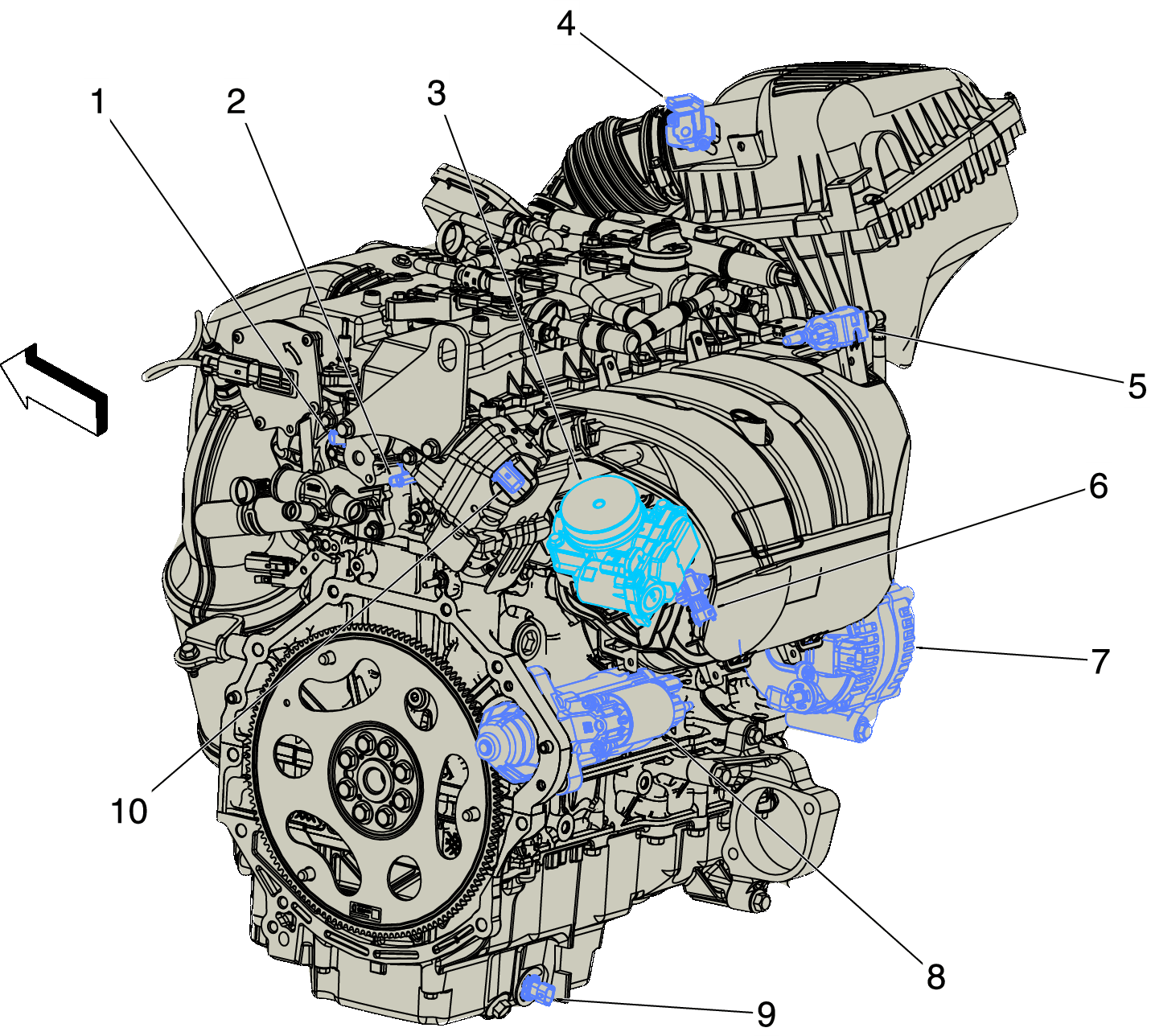

Left Rear of Engine Components
Left Rear of Engine Components
| Items |
|---|
| 1: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor |
| 2: B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake |
| 3: Q38 Throttle Body Q38 Throttle Body |
| 4: B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor |
| 5: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 6: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LCV)B74 Manifold Absolute Pressure Sensor (LTG) |
| 7: G13 Generator G13 Generator X1 |
| 8: M64 Starter Motor M64 Starter Motor |
| 9: B35 Engine Oil Level Switch B35 Engine Oil Level Switch |
| 10: G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump |
