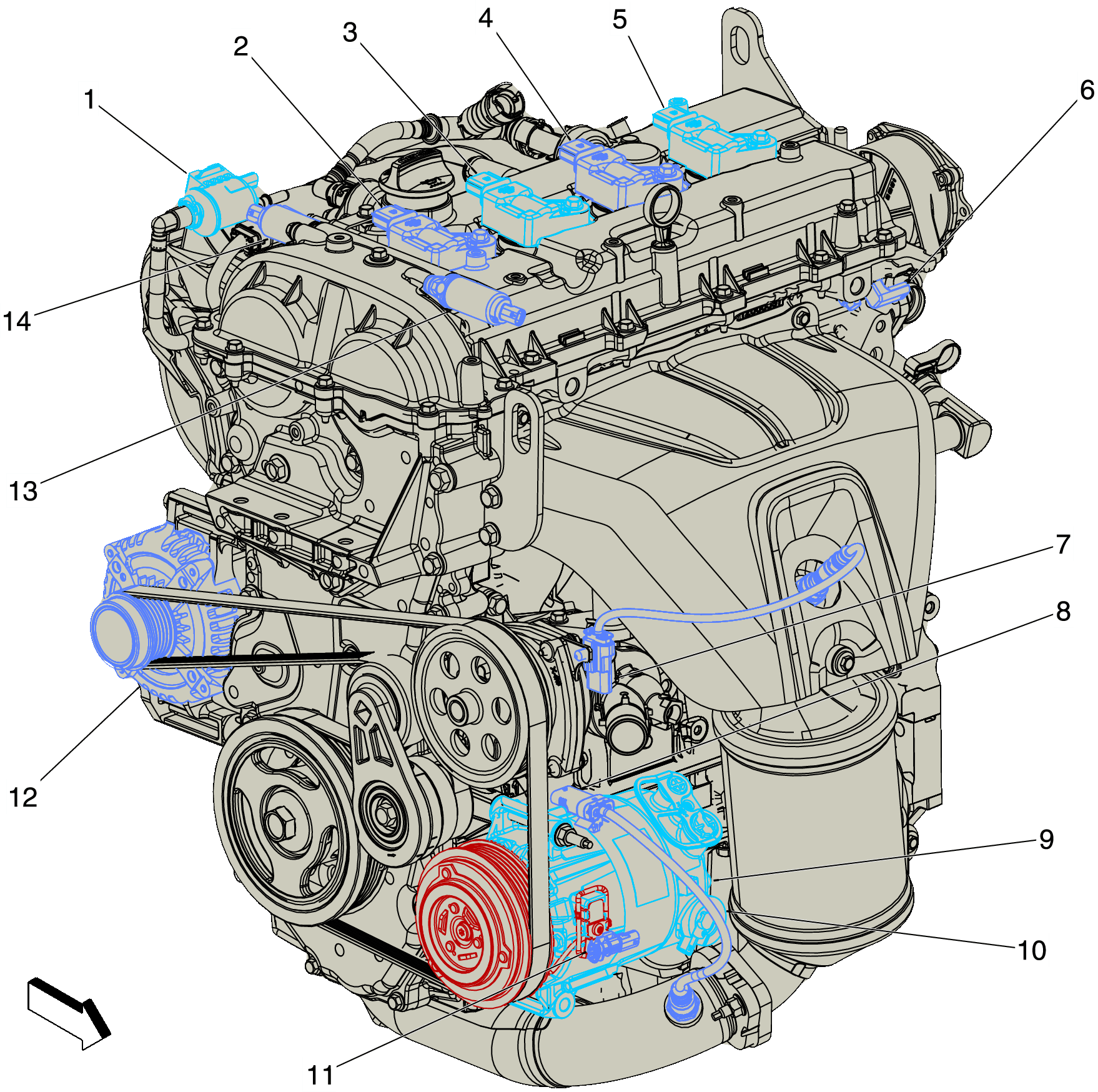

Right Front of Engine Components (LCV)
Right Front of Engine Components (LCV)
| Items |
|---|
| 1: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 2: T8A Ignition Coil 1 T8A Ignition Coil 1 |
| 3: T8B Ignition Coil 2 T8B Ignition Coil 2 |
| 4: T8C Ignition Coil 3 T8C Ignition Coil 3 |
| 5: T8D Ignition Coil 4 T8D Ignition Coil 4 |
| 6: B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust |
| 7: B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 (LCV) |
| 8: B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 |
| 9: G1 A/C Compressor |
| 10: Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve (LCV) |
| 11: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch (LCV) |
| 12: G13 Generator G13 Generator X1 |
| 13: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust |
| 14: Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake |
