Catalytic Converter Heat Shield Replacement

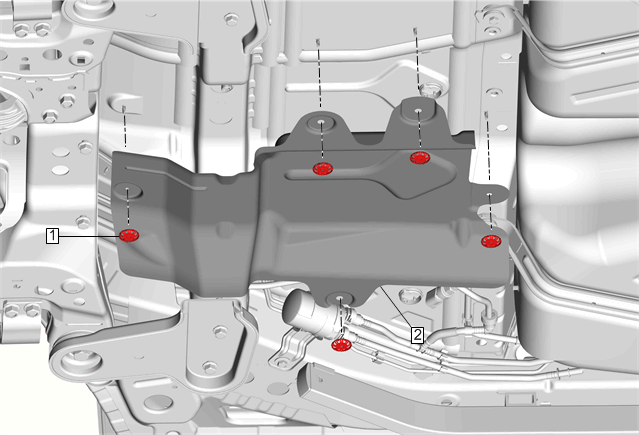

Fig 1: Catalytic Converter Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . Preliminary Procedure Lifting and Jacking the Vehicle Exhaust Front Pipe Replacement (LTG) Exhaust Front Pipe Replacement (LCV)
1	Catalytic Converter Heat Shield Fastener (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Catalytic Converter Heat Shield

Callout

Component Name

WARNING:

Preliminary Procedure

Catalytic Converter Heat Shield Fastener (Qty: 5)

CAUTION:

Tighten
1.5 N.m (13 lb in)

Catalytic Converter Heat Shield
