Front Seat Belt Guide Adjuster Replacement

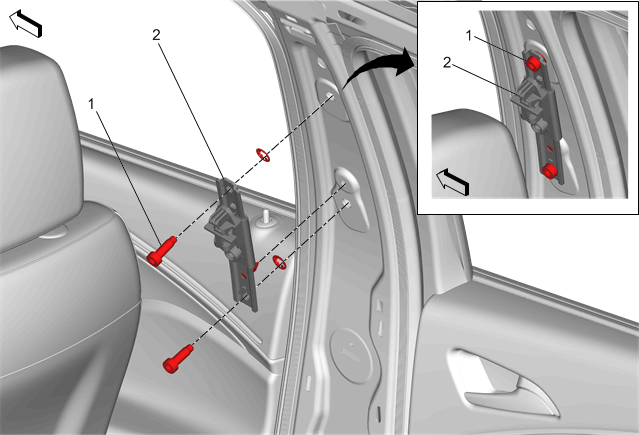

Fig 1: Front Seat Belt Guide Adjuster

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Center Pillar Upper Trim Panel. Refer to Center Pillar Upper Trim Panel Replacement
1	Front Seat Shoulder Belt Retractor Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Front Seat Belt Guide Adjuster
