Rear Seat Belt Retractor Replacement

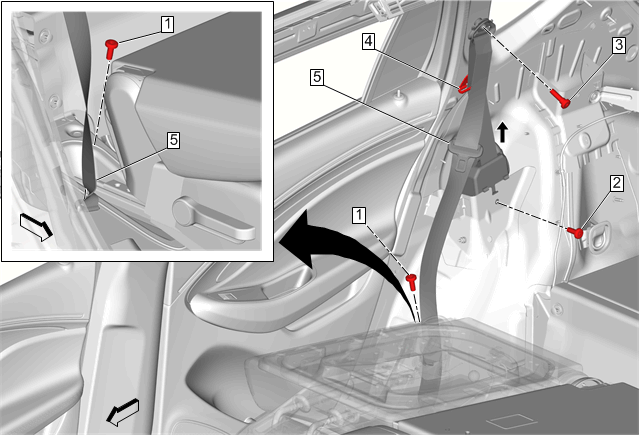

Fig 1: Rear Seat Belt Retractor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling Remove Quarter Window Trim Finish Panel. Refer to Quarter Window Trim Finish Panel Replacement
1	Rear Seat Belt Retractor Anchor Plate Bolt CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Belt Retractor Bolt (Lower) Tighten 45 N.m (33 lb ft) NOTE: When the seat belt retractor is replaced with a new one, there is no thread in the nut welded to the retractor. This is normal as the bolt will make the thread in the welded nut when the bolt is tightened.
3	Rear Seat Belt Retractor Bolt (Upper) Tighten 45 N.m (33 lb ft)
4	Rear Seat Belt Retractor Intermediate Web Guide
5	Rear Seat Belt Retractor NOTE: Route seat belt webbing through the slot in the rear side door window garnish molding.
