Steering Gear Boot Replacement

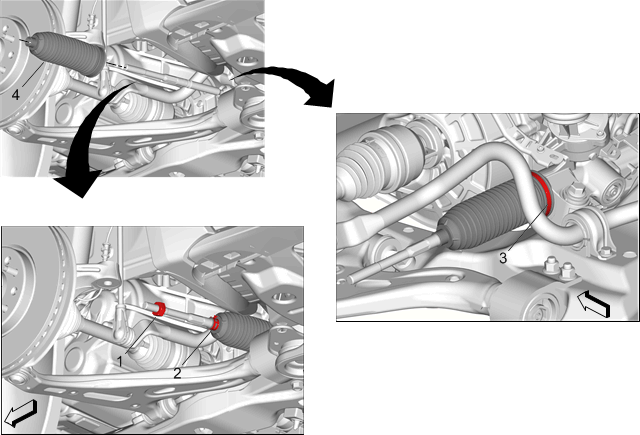

Fig 1: Steering Gear Boot

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Steering Linkage Outer Tie Rod. Refer to Steering Linkage Outer Tie Rod Replacement
1	Steering Linkage Inner Tie Rod Nut Procedure Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod.
2	Steering Gear Boot Outer Clamp
3	Steering Gear Boot Inner Clamp Procedure Cut the steering gear boot inner clamp. DISCARD the clamp. Use the CH-22610 pliers to install the NEW steering gear boot inner clamp. NOTE: Position the NEW steering gear boot inner clamp on the steering gear boot before installing the boot on the steering gear. Special Tools CH-22610 Keystone Clamp Pliers Equivalent regional tools: Special Tools
4	Steering Gear Boot Procedure After removing the steering gear boot, inspect the steering linkage inner tie rod for evidence of corrosion or contamination. If corrosion or contamination is evident, replace the steering gear. Refer to Electric Dual Pinion Rack and Pinion Steering Gear Replacement (LTG With AWD) Electric Dual Pinion Rack and Pinion Steering Gear Replacement (LCV With AWD) Electric Dual Pinion Rack and Pinion Steering Gear Replacement (LCV With FWD) Install the steering gear boot and ensure the boot is seated in the assembly groove of the steering gear before installing the steering gear boot clamps.
