Electronic Suspension Control Module Replacement

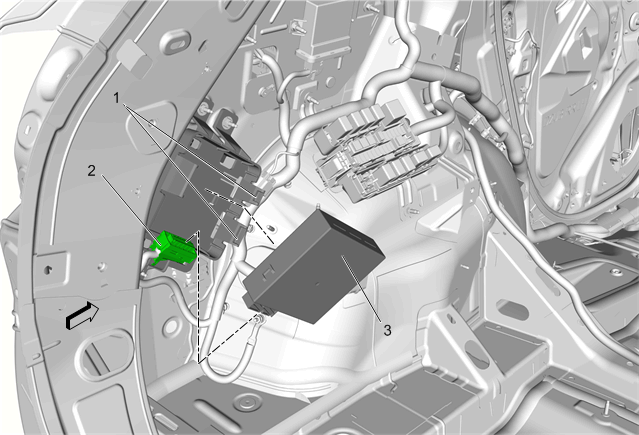

Fig 1: Electronic Suspension Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Quarter Lower Rear Trim Panel Replacement
1	Electronic Suspension Control Module Mounting Bracket Procedure  Release the retaining tabs.
2	Electronic Suspension Control Module Electrical Connector Procedure  Disconnect the electrical connector.
3	Electronic Suspension Control Module Procedure  Control Module References
