Side Object Sensing Alert Module Replacement

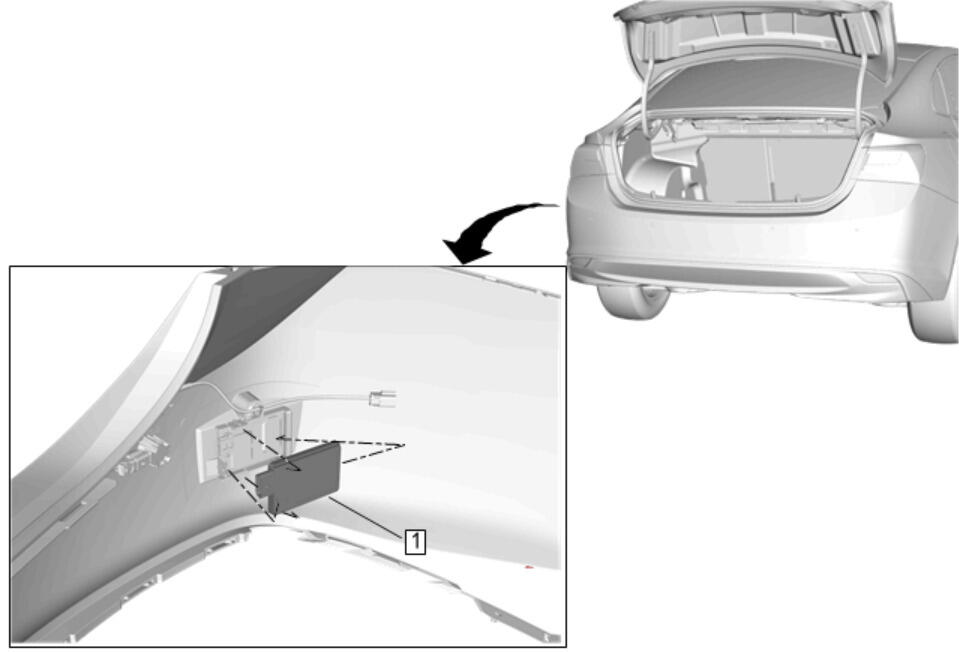

Fig 1: Side Object Sensing Alert Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Bumper Fascia Replacement
1	Side Object Sensing Alert Module Procedure Disconnect the electrical connector. Release the tab retainers and slide the module out of the retaining bracket. Control Module References for programming and setup information, if required.

Callout

Component Name

Side Object Sensing Alert Module

Procedure
