Driver Seat Adjuster Memory Module Replacement

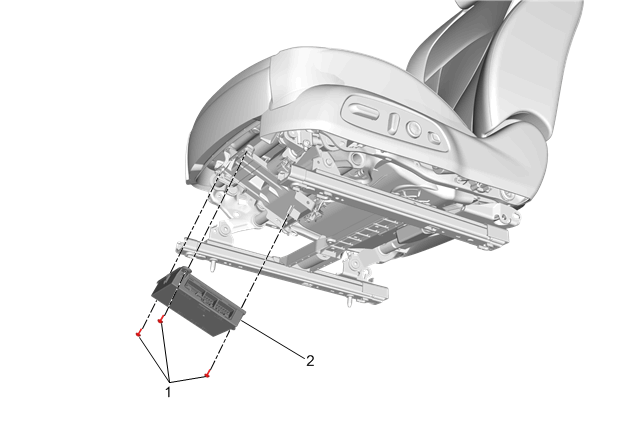

Fig 1: Driver Seat Adjuster Memory Module
GM4323231Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Driver or Passenger Seat Removal and Installation
1 Driver Seat Adjuster Memory Module Fastener
CAUTION:

Fastener Caution


Tighten
1.25 N.m (11 lb in)
2 Driver Seat Adjuster Memory Module
Procedure
Disconnect the electrical connectors.
