Front Seat Belt Guide Adjust Opening Cover Replacement

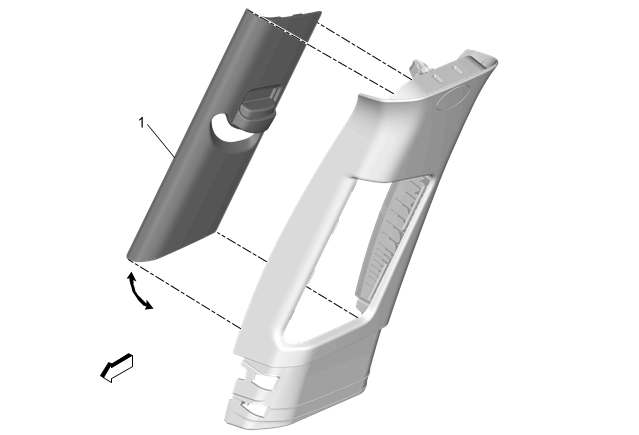

Fig 1: Front Seat Belt Guide Adjust Opening Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel Replacement
1	Front Seat Belt Guide Adjuster Opening Cover Procedure Slide the seat shoulder belt guide upward to disengage it from the center pillar upper trim panel. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove the center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel Replacement

Front Seat Belt Guide Adjuster Opening Cover

Procedure

Slide the seat shoulder belt guide upward to disengage it from the center pillar upper trim panel.
Transfer components as necessary.
