Rear Seat Belt Retractor Replacement

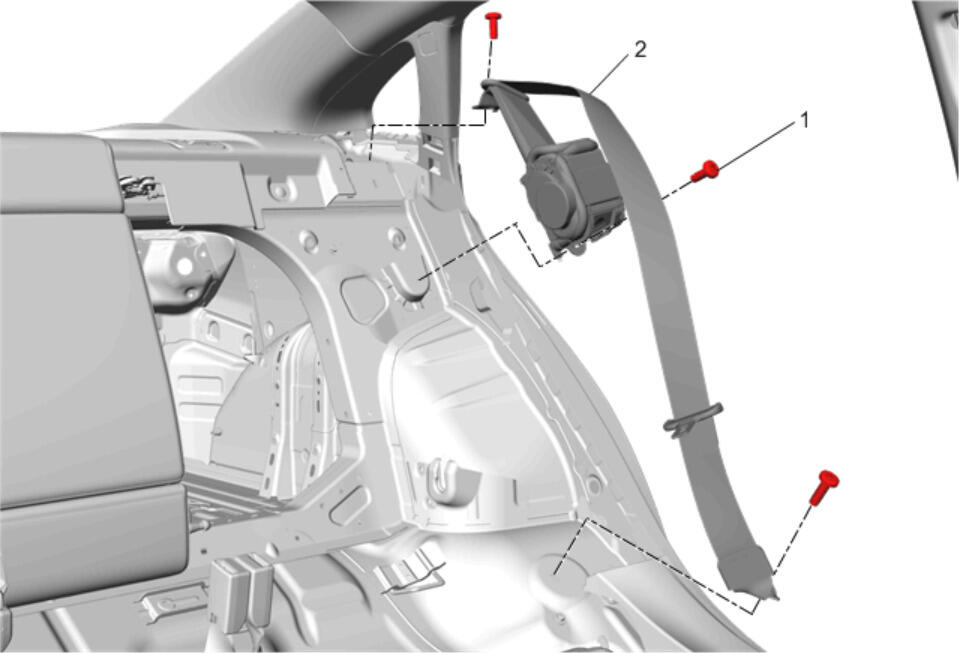

Fig 1: Rear Seat Belt Retractor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Seat Belt Guide Trim Cover Replacement
1	Rear Seat Belt Retractor Bolt[3x] CAUTION: Fastener Caution Tighten 45 N.m (33 lb ft)
2	Rear Seat Belt Retractor
