Communication Interface Module Replacement

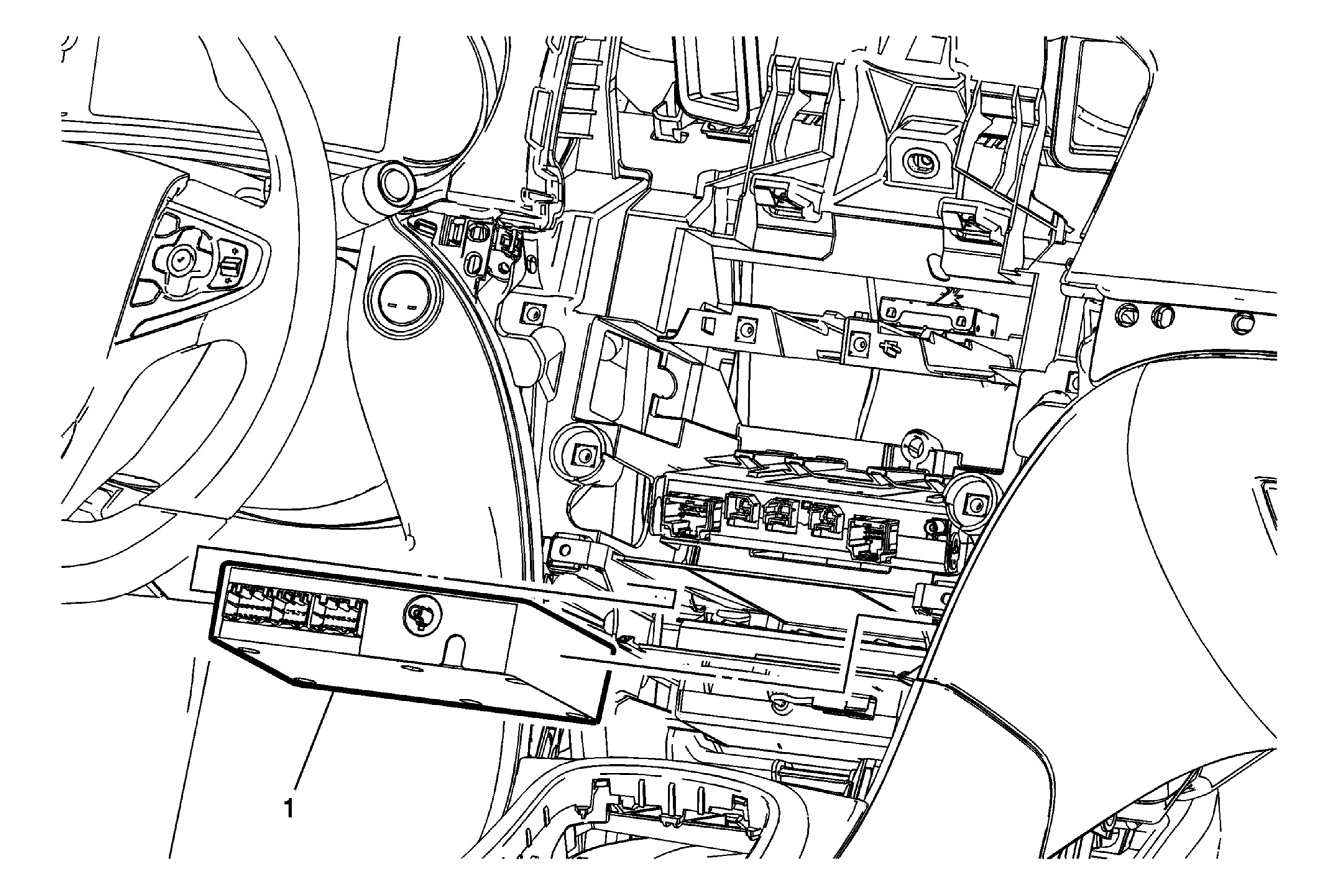

Fig 1: Communication Interface Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower center trim panel. Refer to Instrument Panel Lower Center Trim Panel Replacement .
1	Communication Interface Module Procedure Disconnect the electrical connections. For programming and set up information. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the instrument panel lower center trim panel. Refer to Instrument Panel Lower Center Trim Panel Replacement .

Communication Interface Module

Procedure
