Driver or Passenger Seat Adjuster Memory Module Replacement

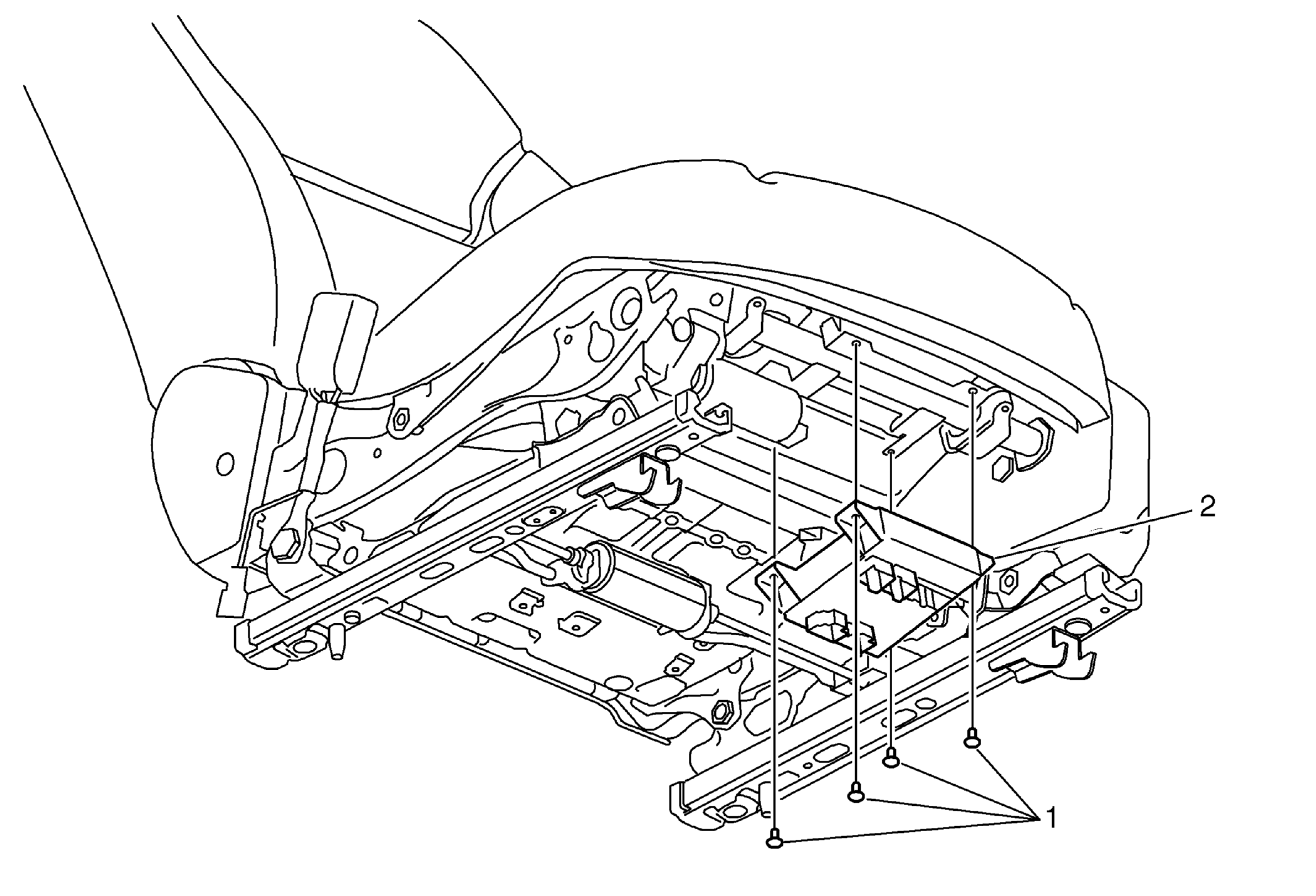

Fig 1: Driver or Passenger Seat Adjuster Memory Module

GM2019877

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
If a NEW ECM was installed, the ECM must be programmed. Refer to Control Module References .

1

Driver Seat Adjuster Memory Module Fastener (Qty: 4)

Procedure

Move the driver or passenger seat full backward.
Move the seat in upper position.
Turn off the ignition.
Disconnect the battery.
Disconnect the wiring harness connector.

2

Front Seat Adjuster Memory Module
