Chassis Expansion Bus (except CZ2)

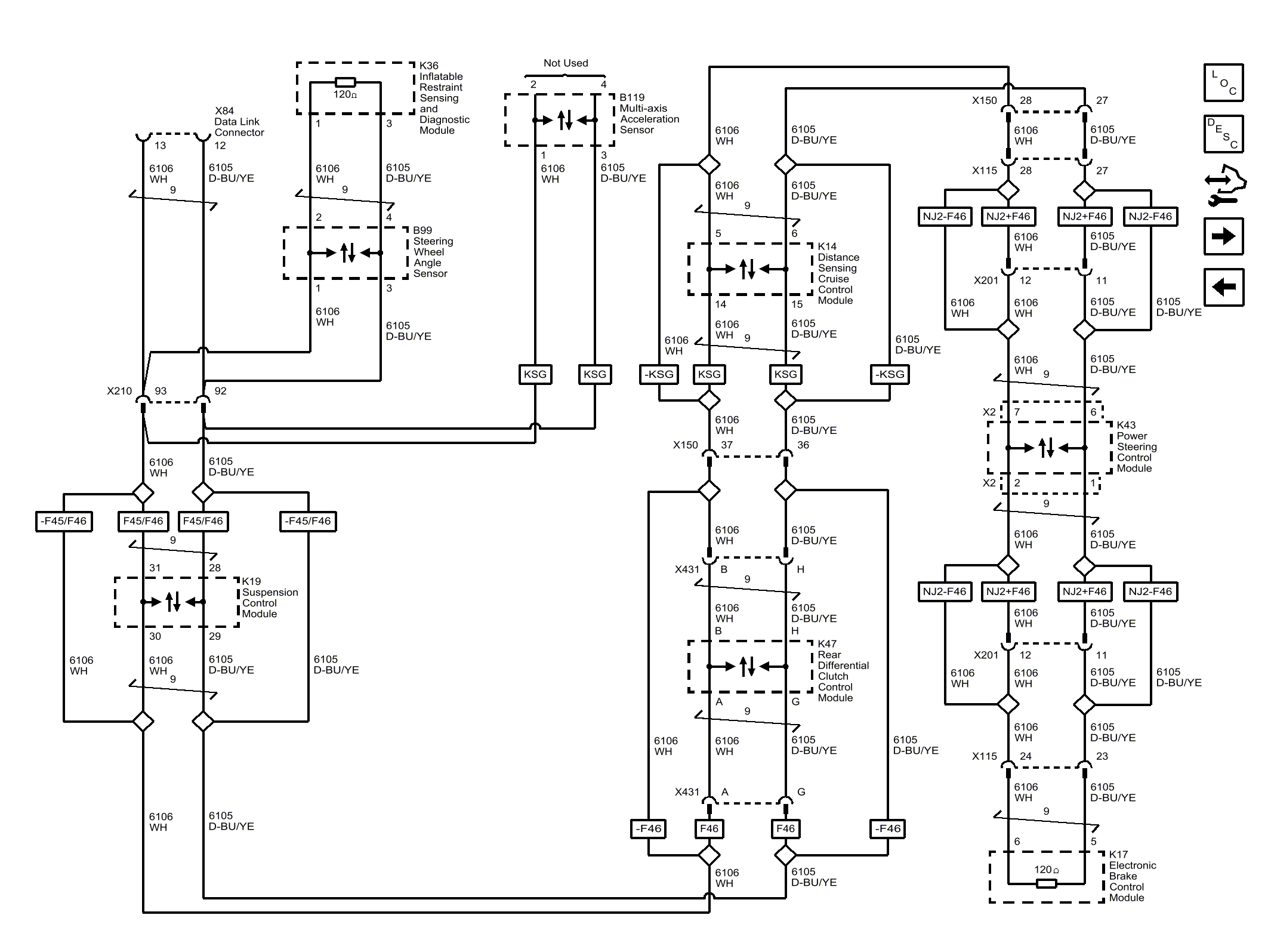

Fig 1: Chassis Expansion Bus (except CZ2)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
