Electronic Suspension Control Module Replacement

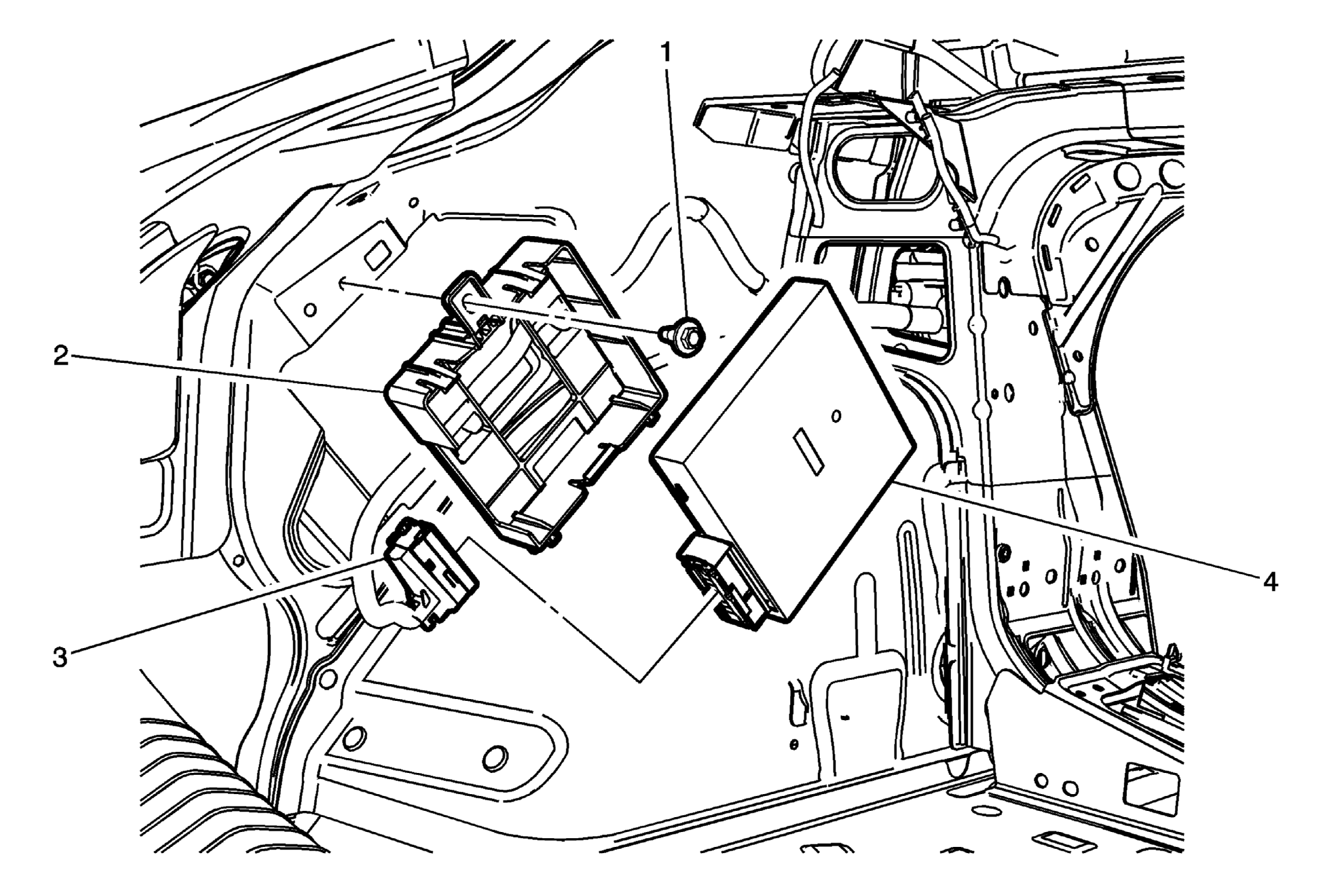

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the left side luggage compartment trim. Refer to Rear Compartment Side Trim Panel Replacement (HP6, Left Side)Rear Compartment Side Trim Panel Replacement (without HP6) . |
|
| 1 | Electronic Suspension Control Module Bracket Bolt
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Electronic Suspension Control Module Bracket |
| 3 | Electronic Suspension Control Module Electrical Harness Connector |
| 4 | Electronic Suspension Control Module Procedure For programming and setup information, refer to Control Module References . |
