Human Machine Interface Control Module Replacement

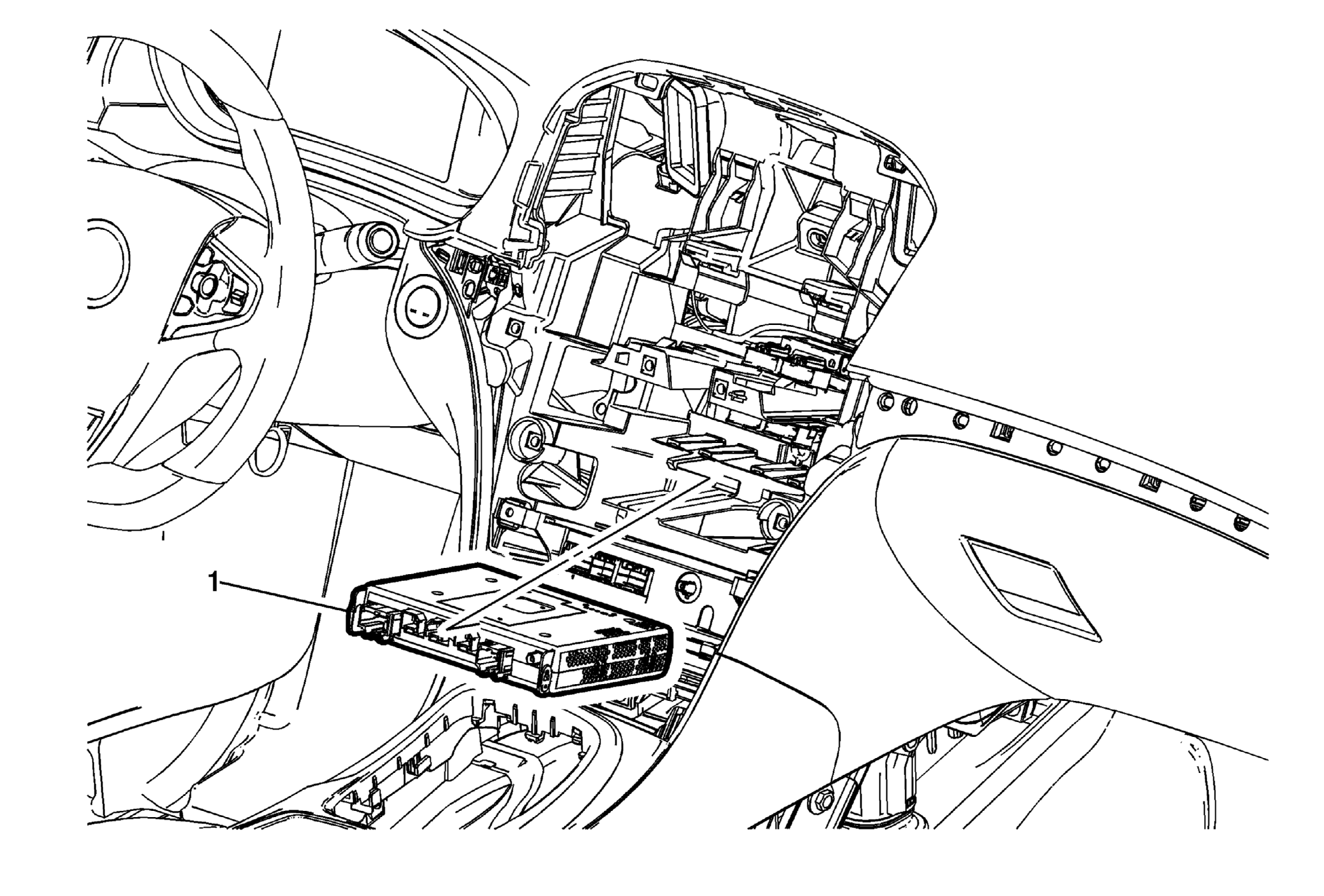

Fig 1: Human Machine Interface Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel center trim panel. Refer to Instrument Panel Lower Center Trim Panel Replacement .
1	Human Machine Interface Control Module Procedure Disconnect the electrical connections. Release tab on bracket and slide module out to remove. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel center trim panel. Refer to Instrument Panel Lower Center Trim Panel Replacement .

Human Machine Interface Control Module

Procedure
