High Speed Bus 2

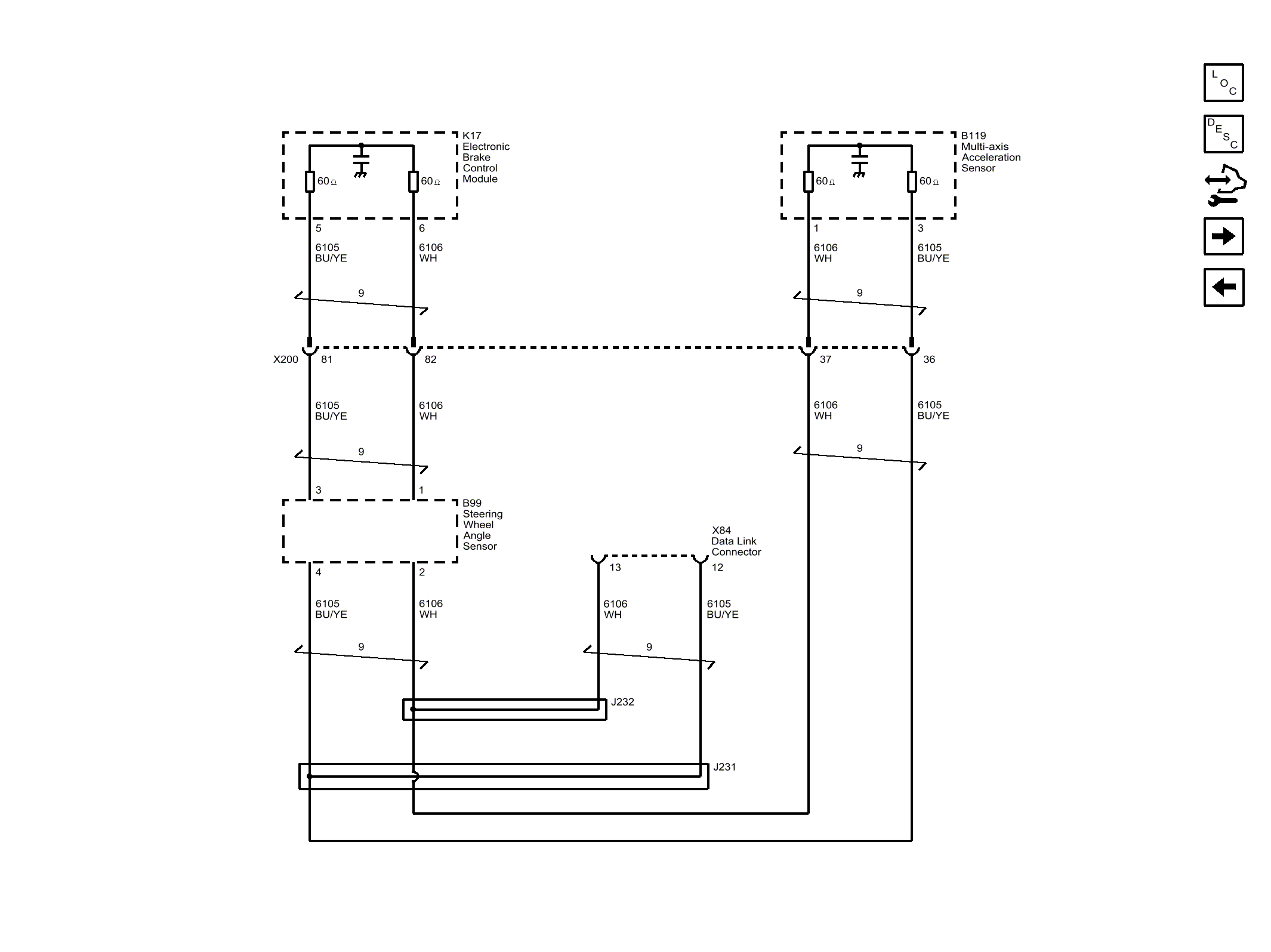

Fig 1: High Speed Bus 2 High Speed Bus 1
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
