Parking Assist Control Module Replacement

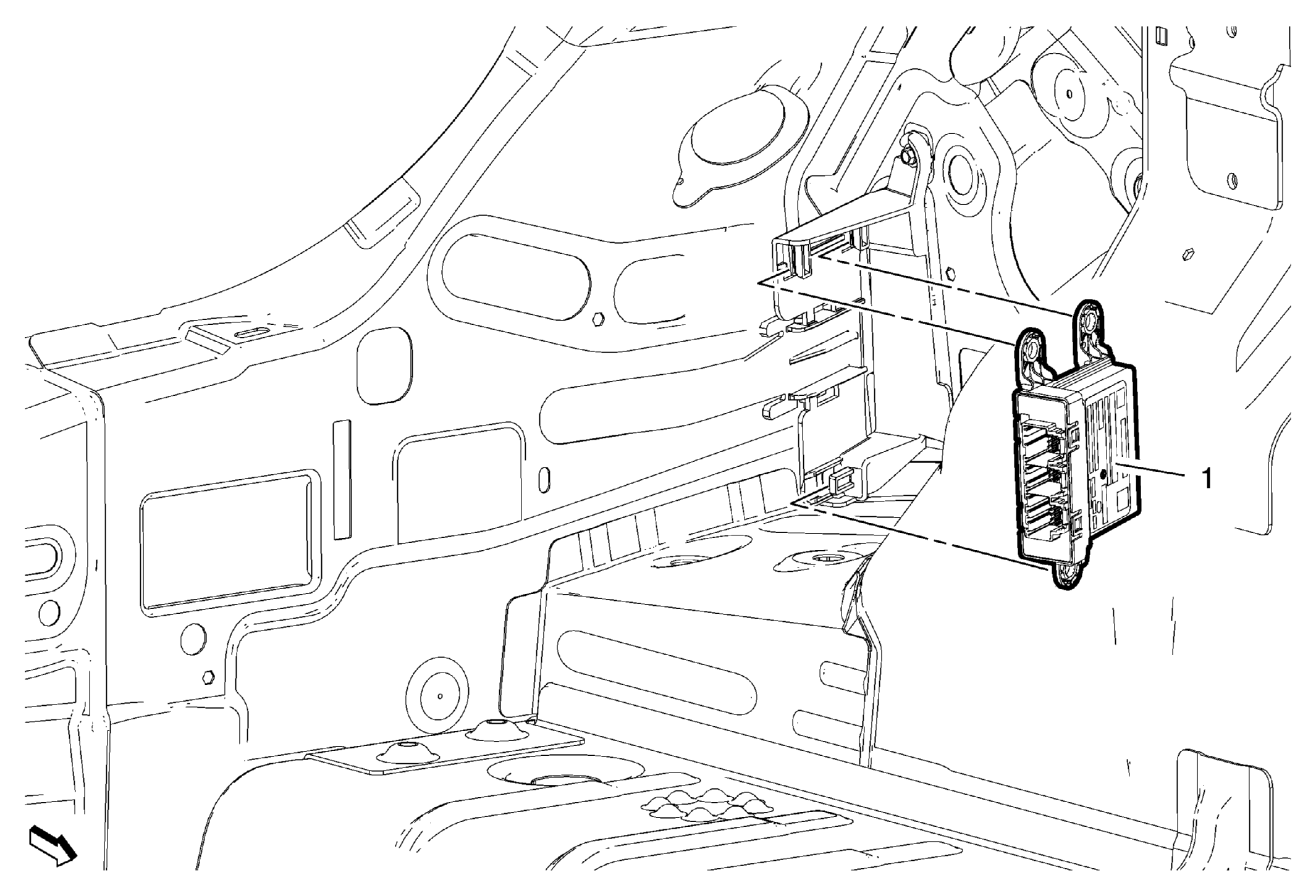

Fig 1: Front & Rear Object Alarm Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment side trim. Refer to Rear Compartment Side Trim Replacement - Left Side .
1	Front and Rear Object Alarm Module Procedure Release the locking retainer from the front and rear object alarm module bracket. Disconnect the front and rear object alarm module electrical connector. After repairs, refer to Control Module References for programming and set up information.

Callout

Component Name

Preliminary Procedures
Remove the rear compartment side trim. Refer to Rear Compartment Side Trim Replacement - Left Side .

Front and Rear Object Alarm Module

Procedure

Release the locking retainer from the front and rear object alarm module bracket.
Disconnect the front and rear object alarm module electrical connector.
After repairs, refer to Control Module References for programming and set up information.
