Remote Control Door Lock Receiver Replacement (without Sunroof)

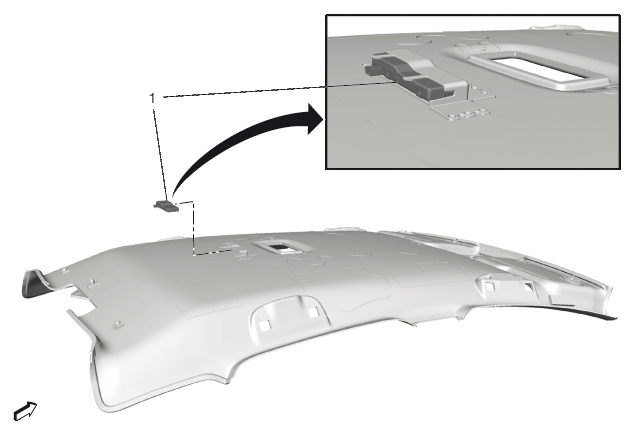

Fig 1: Remote Control Door Lock Receiver (without Sunroof)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Headlining Trim Panel. Refer to Headlining Trim Panel Replacement (without Sunroof)
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Loosen the retaining tabs and remove from bracket.

Callout

Component Name

Preliminary Procedure
Remove Headlining Trim Panel. Refer to Headlining Trim Panel Replacement (without Sunroof)

Remote Control Door Lock Receiver

Procedure
