Rear Seat Belt Intermediate Guide Replacement

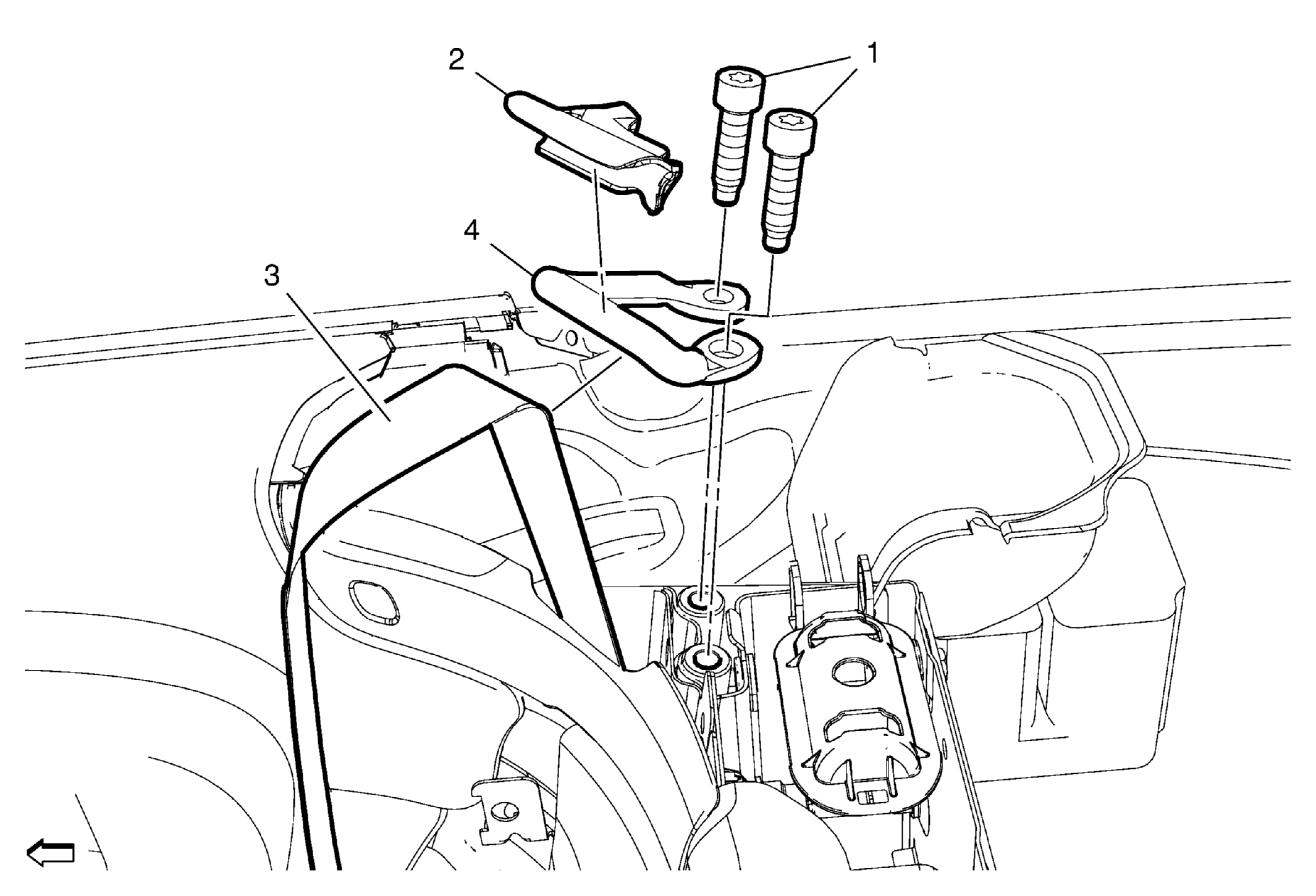

Callout	Component Name
Preliminary Procedure Bring the folding top to the third service position. Refer to Folding Top Positions Overview .
1	Rear Seat Belt Intermediate Guide Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Clean the threads with appropriate thread chaser. Fasteners are microencapsulated. Install NEW driver or passenger seat bolts. DO NOT reuse the old bolts. Tighten 45 N.m (33 lb ft)
2	Rear Seat Belt Intermediate Guide Cover Procedure Unclip the cover from the rear seat belt intermediate guide.
3	Rear Seat Center Shoulder Belt Procedure Remove the shoulder belt from the rear seat belt intermediate guide.
4	Rear Seat Belt Intermediate Guide
