Human Machine Interface Control Module Replacement

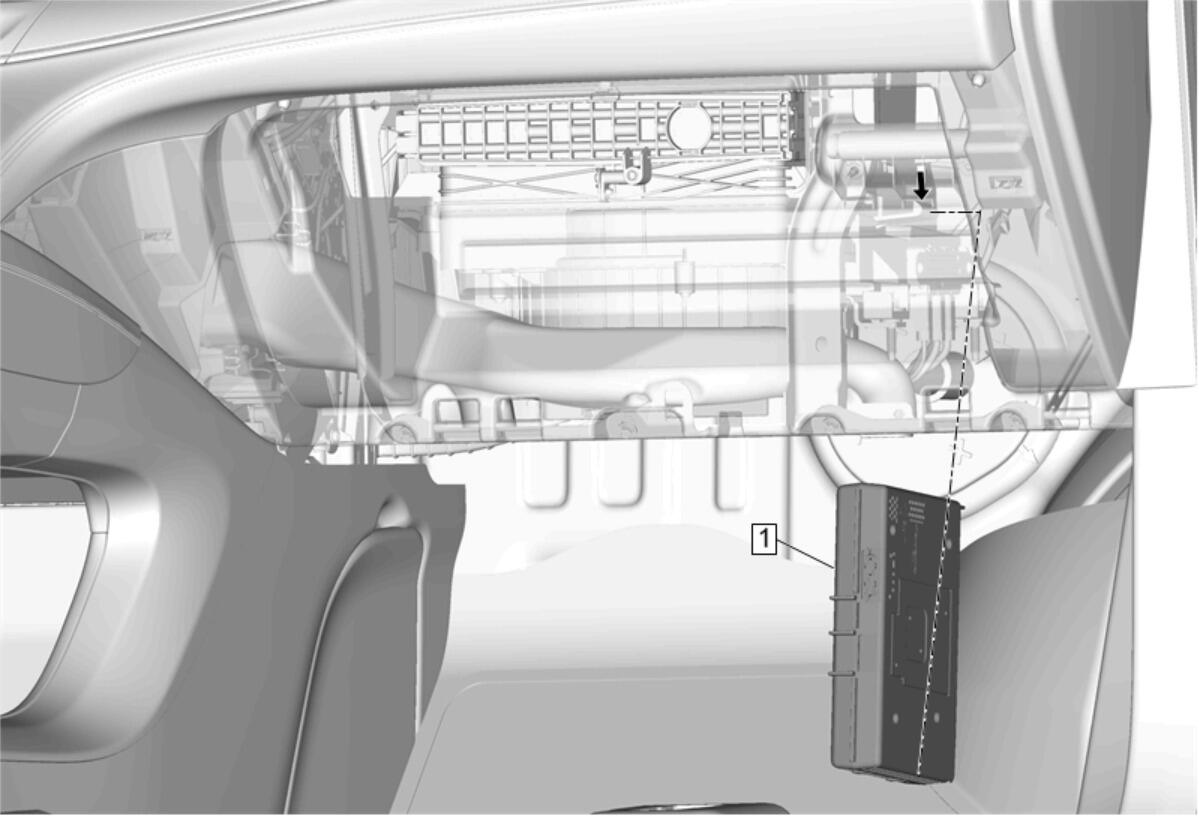

GM4787140
Callout Component Name
Preliminary Procedure
Radio Bracket Replacement
1 Human Machine Interface Control Module

Procedure

  1. Release the retaining tab.
  2. Disconnect the electrical connectors.
  3. Perform the necessary programming and setup procedure:Control Module References
