Wireless Charging System Module Replacement

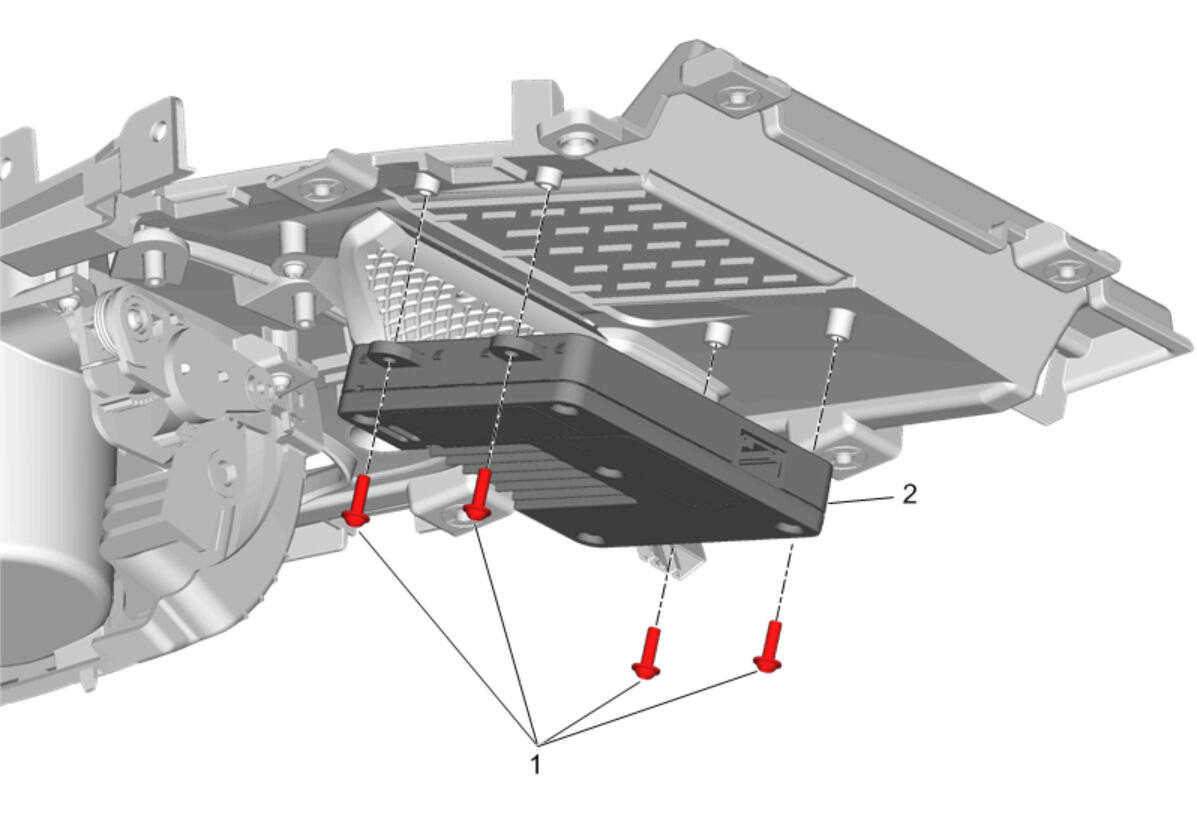

GM4823597
Callout Component Name
Preliminary Procedure
Front Floor Console Trim Plate Replacement
1 Wireless Charging System Module Bolt [4x]
CAUTION:

Fastener Caution


Tighten
1 N.m (9 lb in)
2 Wireless Charging System Module
