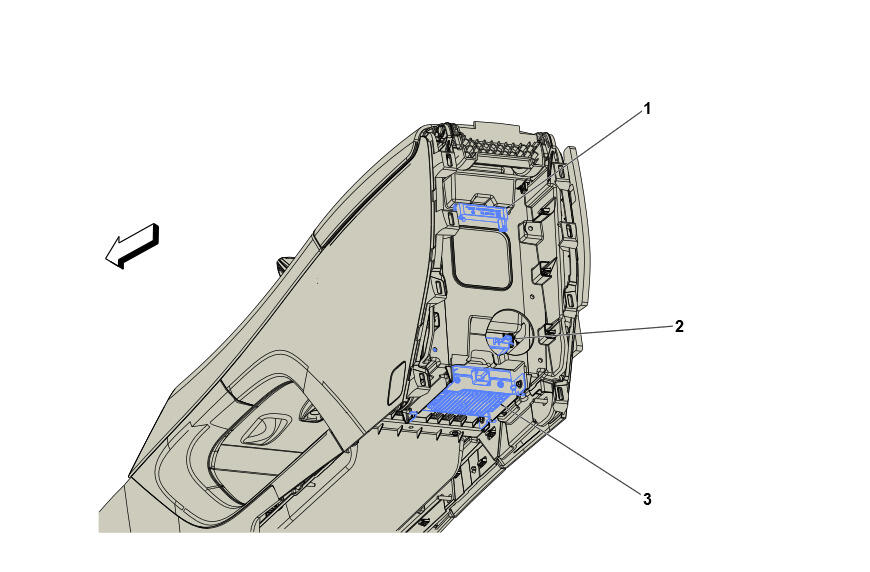

Inside Rear of Center Console Components

GM4739271
Inside Rear of Center Console Components

Items
1. T10K Keyless Entry Antenna - Center Console Rear T10K Keyless Entry Antenna - Center Console Rear
2. K89 Immobilizer Control Module K89 Immobilizer Control Module
3. T1 Accessory DC/AC Power Inverter Module (KI6 or KI7) T1 Accessory DC/AC Power Inverter Module (KI6)T1 Accessory DC/AC Power Inverter Module (KI7)
