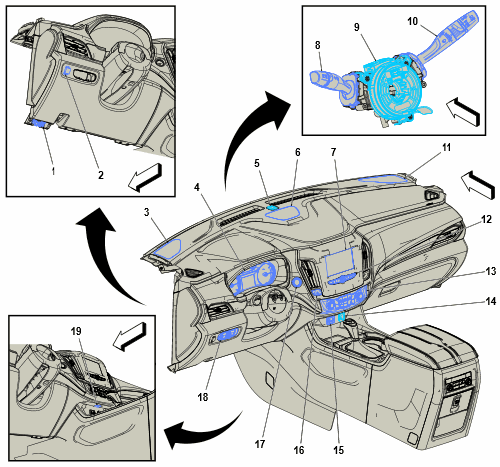

Instrument Panel Components

Items
1. X84 Data Link Connector X84 Data Link Connector
2. B80 Park Brake Switch B80 Park Brake Switch (W49)B80 Park Brake Switch (X88)
3. P19J Speaker - Left Instrument Panel P19J Speaker - Left Instrument Panel (UQA)P19J Speaker - Left Instrument Panel (UQF)
4. P16 Instrument Cluster P16 Instrument Cluster
5. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor
6. P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel
7. A22 Radio Controls (IO5 or IO6) A22 Radio Controls X1 (IO5/IO6)A22 Radio Controls X2 (IO5/IO6)
8. S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch
9. X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1 X85 Steering Wheel Air Bag Coil X2
10. S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch
11. P19W Speaker - Right Instrument Panel P19W Speaker - Right Instrument Panel (UQA)P19W Speaker - Right Instrument Panel (UQF)
12. A11 Radio A11 Radio X1 (IO5/IO6)A11 Radio X1 (IOA)A11 Radio X2 (IO5/IO6)A11 Radio X2 (IOA)A11 Radio X3 (IO5/IO6)A11 Radio X3 (IOA)A11 Radio X4 A11 Radio X6
13. A26 HVAC Controls A26 HVAC Controls
14. X80F Accessory Power Receptacle - Front (X88) X80F Accessory Power Receptacle - Front (X88)
15. X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 (W49)X83 Auxiliary Audio Input X1 (X88)X83 Auxiliary Audio Input X2 (W49)X83 Auxiliary Audio Input X2 (X88)
16. S26 Hazard Warning Switch S26 Hazard Warning Switch (W49)S26 Hazard Warning Switch (X88)
17. S38 Ignition Mode Switch S38 Ignition Mode Switch (W49)S38 Ignition Mode Switch (X88)
18. S30 Headlamp Switch S30 Headlamp Switch
19. E1GA Accent Lamp - Left Middle Instrument Panel E1GA Accent Lamp - Left Middle Instrument Panel
