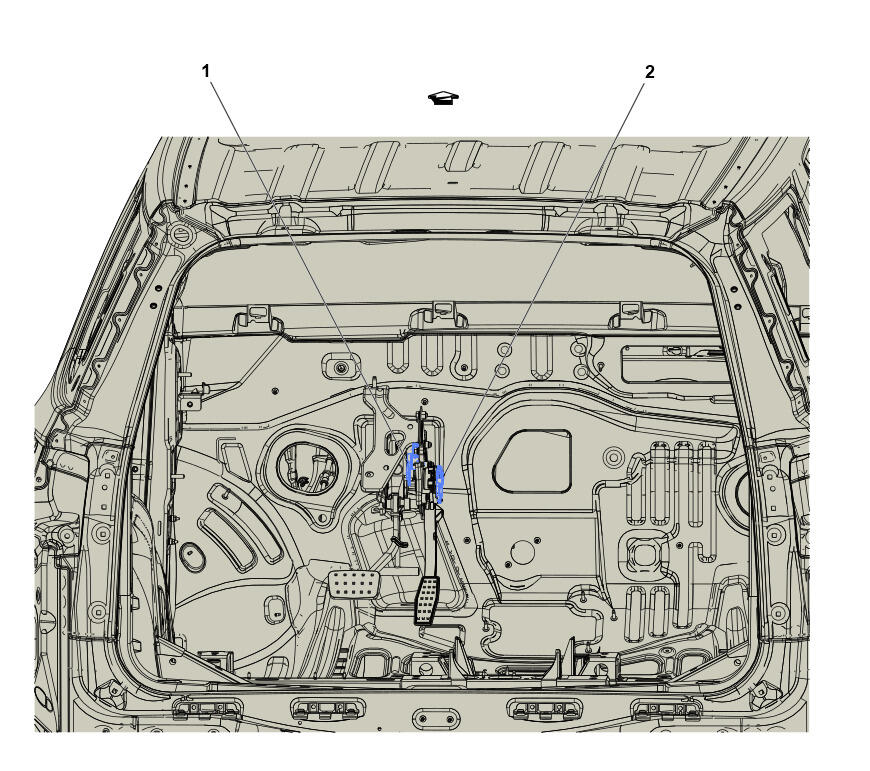

Left Footwell Components

GM4738966
Left Footwell Components

Items
1. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor
2. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
