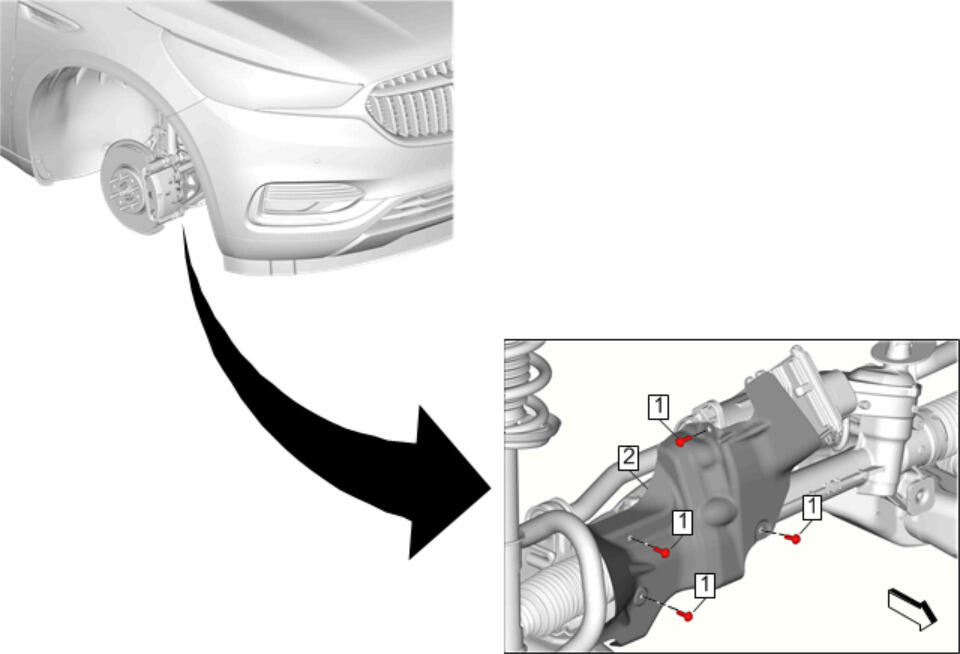

Steering Gear Heat Shield Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Warm Up Three-Way Catalytic Converter Replacement (Bank 1 AWD)Warm Up Three-Way Catalytic Converter Replacement (Bank 1 FWD) - Rear |
|
| 1 | Steering Gear Heat Shield Bolt [4x]
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Steering Gear Heat Shield |
