Steering Linkage Inner Tie Rod Replacement

Callout	Component Name
Preliminary Procedures Steering Gear Boot Replacement After removing the steering gear boot, inspect the steering linkage inner tie rod for evidence of corrosion or contamination. If corrosion or contamination is evident, replace the steering gear. Electric Belt Drive Rack and Pinion Steering Gear Replacement

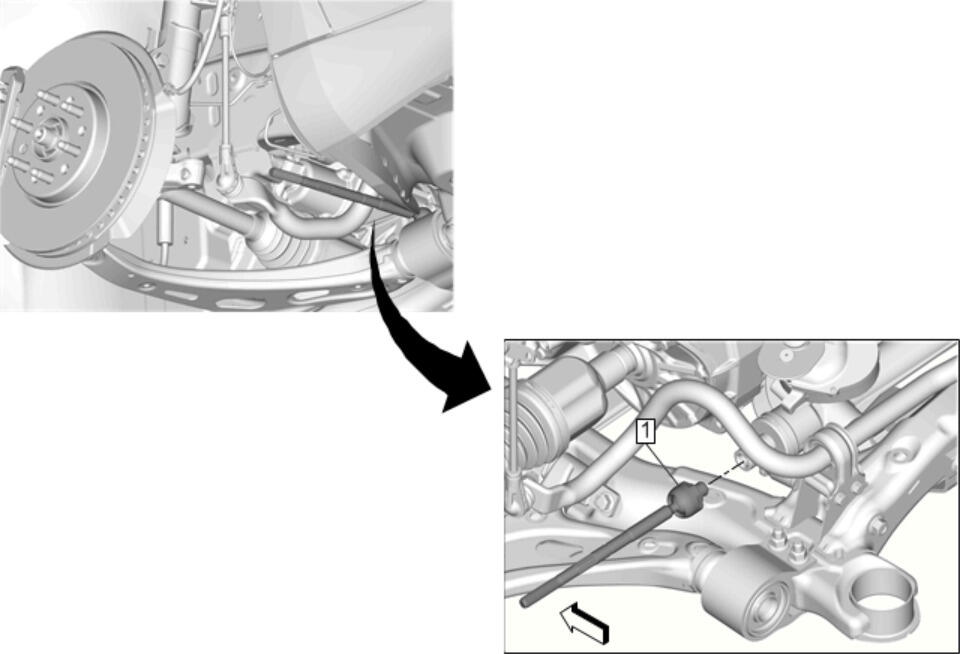

1	Steering Linkage Inner Tie Rod CAUTION: Refer to Component Fastener Tightening Caution . CAUTION: Holding the steering gear rack bar with anything other than a non-serrated adjustable wrench will cause damage to the steering gear Procedure Cover the steering gear rack bar with a clean shop towel. Hold the steering gear rack bar with a non-serrated adjustable wrench. Using a universal inner tie rod wrench, tighten the steering linkage inner tie rod to specification. Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment Tighten 100 N.m (74 lb ft)

Callout

Component Name

Preliminary Procedures

Steering Gear Boot Replacement
After removing the steering gear boot, inspect the steering linkage inner tie rod for evidence of corrosion or contamination. If corrosion or contamination is evident, replace the steering gear. Electric Belt Drive Rack and Pinion Steering Gear Replacement

Steering Linkage Inner Tie Rod

CAUTION:

CAUTION:

Holding the steering gear rack bar with anything other than a non-serrated adjustable wrench will cause damage to the steering gear

Procedure

Cover the steering gear rack bar with a clean shop towel.
Hold the steering gear rack bar with a non-serrated adjustable wrench.
Using a universal inner tie rod wrench, tighten the steering linkage inner tie rod to specification.
Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

Tighten
100 N.m (74 lb ft)
