Rear Toe Adjustment

  1. Measure the alignment angles and record the readings. Wheel Alignment Measurement .

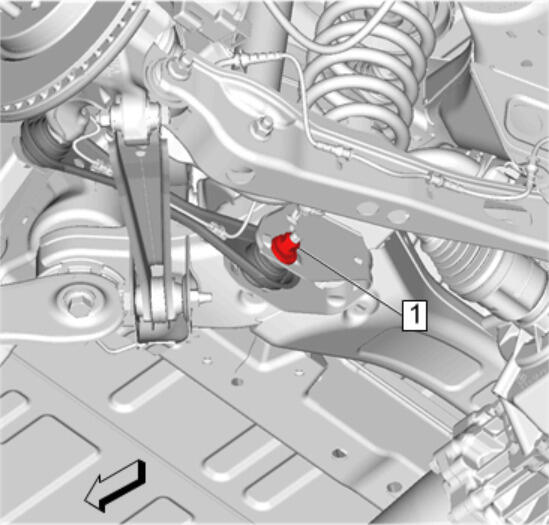

  2. GM4311573

    Rear Suspension Adjust Link Inner Nut (1) - Loosen

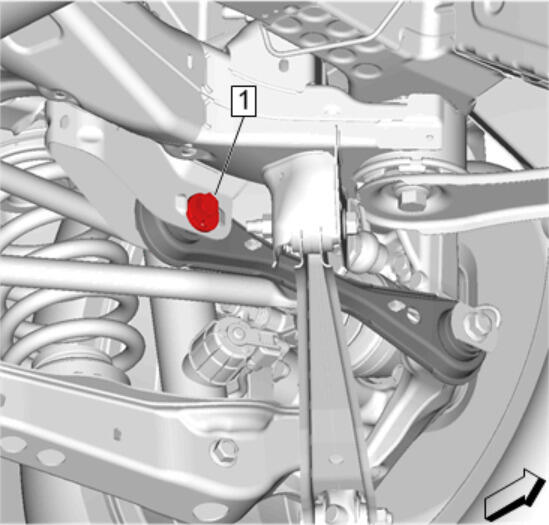

  3. GM4311575

    Rotate the rear suspension adjust link inner bolt (1) until the proper toe measurement is achieved. Wheel Alignment Specifications .

    NOTE:

    Tighten the rear suspension adjust link nut enough to maintain the adjustment. Verify the rear toe reading prior to tightening the bolt to its final torque.

  4. GM4311573
    CAUTION:

    Refer to Fastener Caution .

    Hold the rear suspension adjust link inner bolt and tighten the rear suspension adjust link inner nut (1). Adjust Link Replacement

  5. Check the alignment specification and readjust if necessary. Wheel Alignment Specifications
