Low Frequency Rear Compartment Antenna Replacement

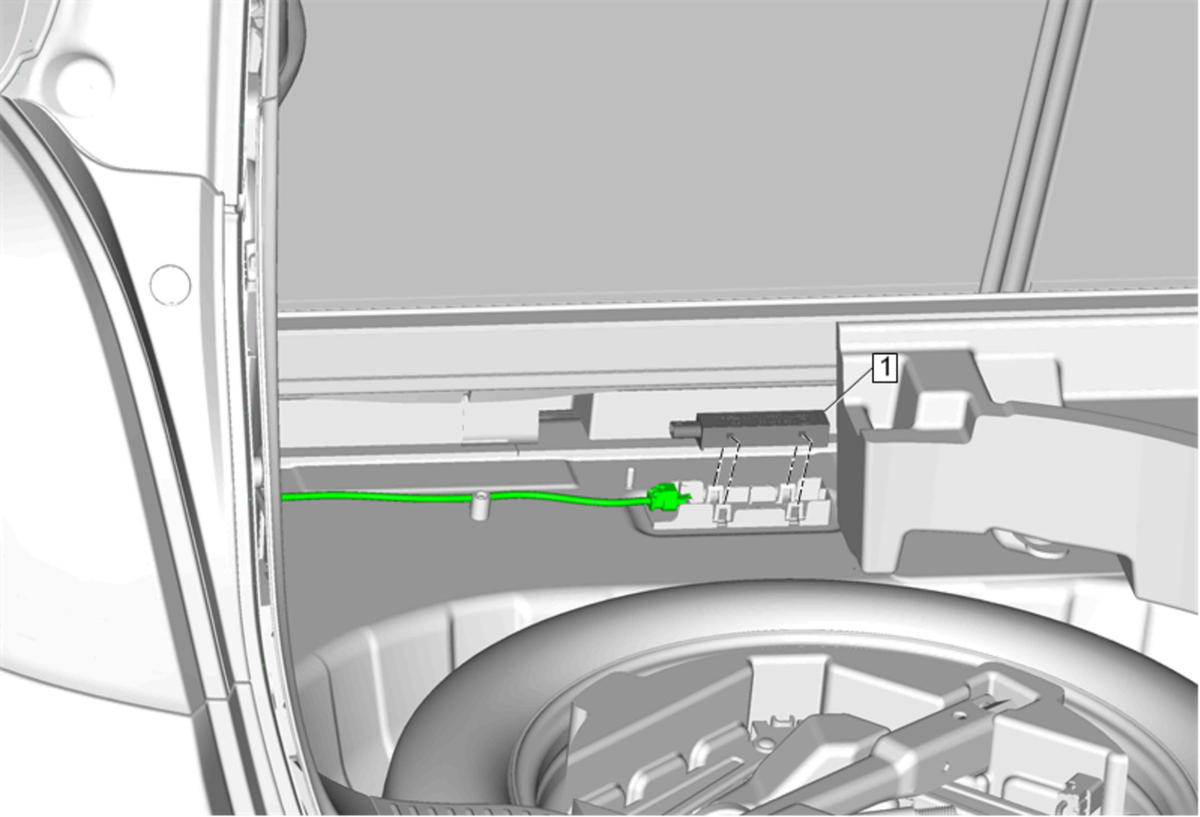

GM4372112
Callout Component Name
Preliminary Procedure
Load Floor Front Trim Panel Support Replacement (Buick)Load Floor Front Trim Panel Support Replacement (Chevrolet)
1 Low Frequency Rear Compartment Antenna

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
