Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Entry System And Remote Functions
>>
Schematic Wiring Diagrams
>>
Remote Function Wiring Schematics (Chevrolet)
>>

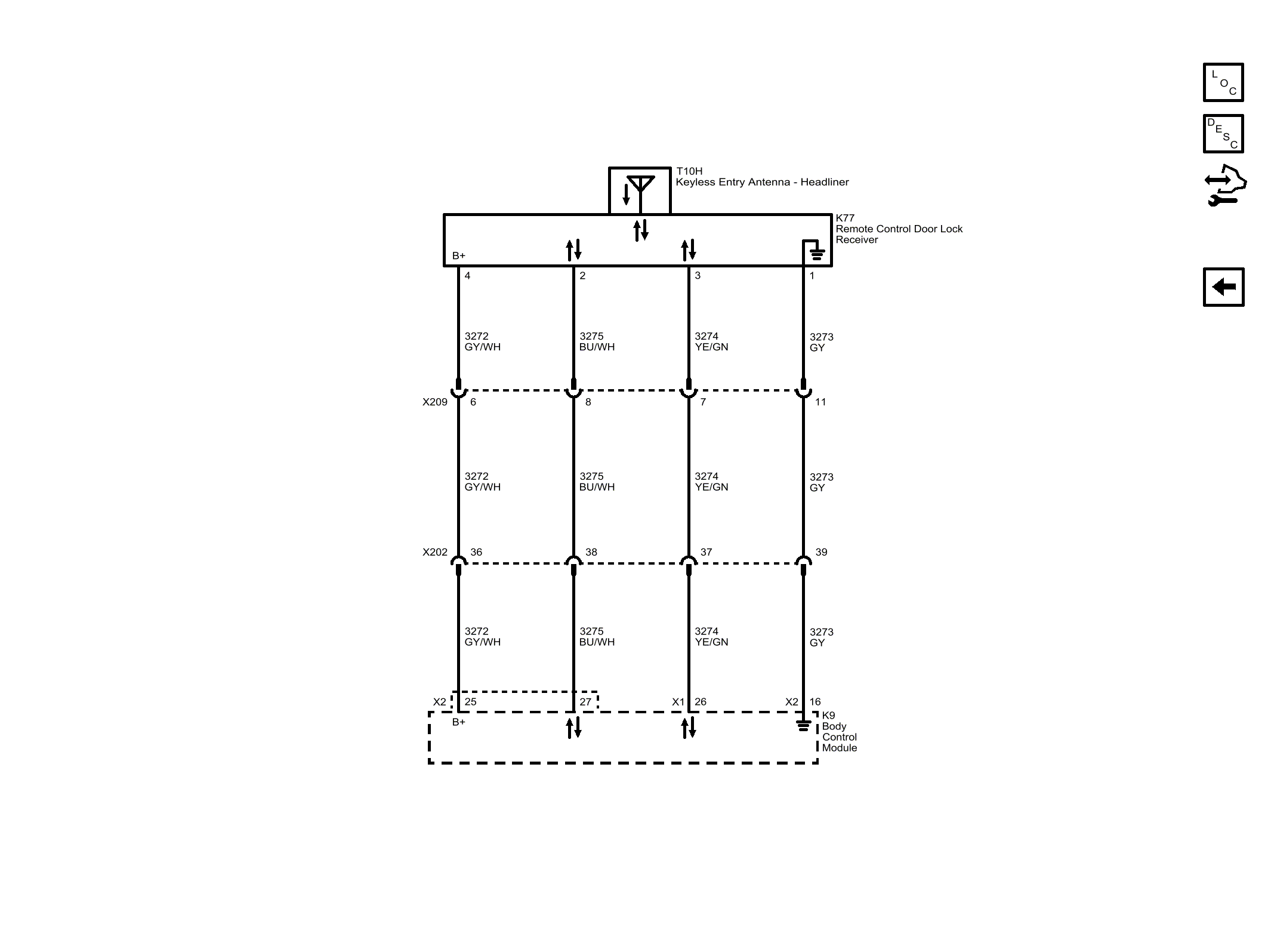

Keyless Entry (Chevrolet)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Keyless Entry (Chevrolet)
