Front Seat Heater Control Module Replacement

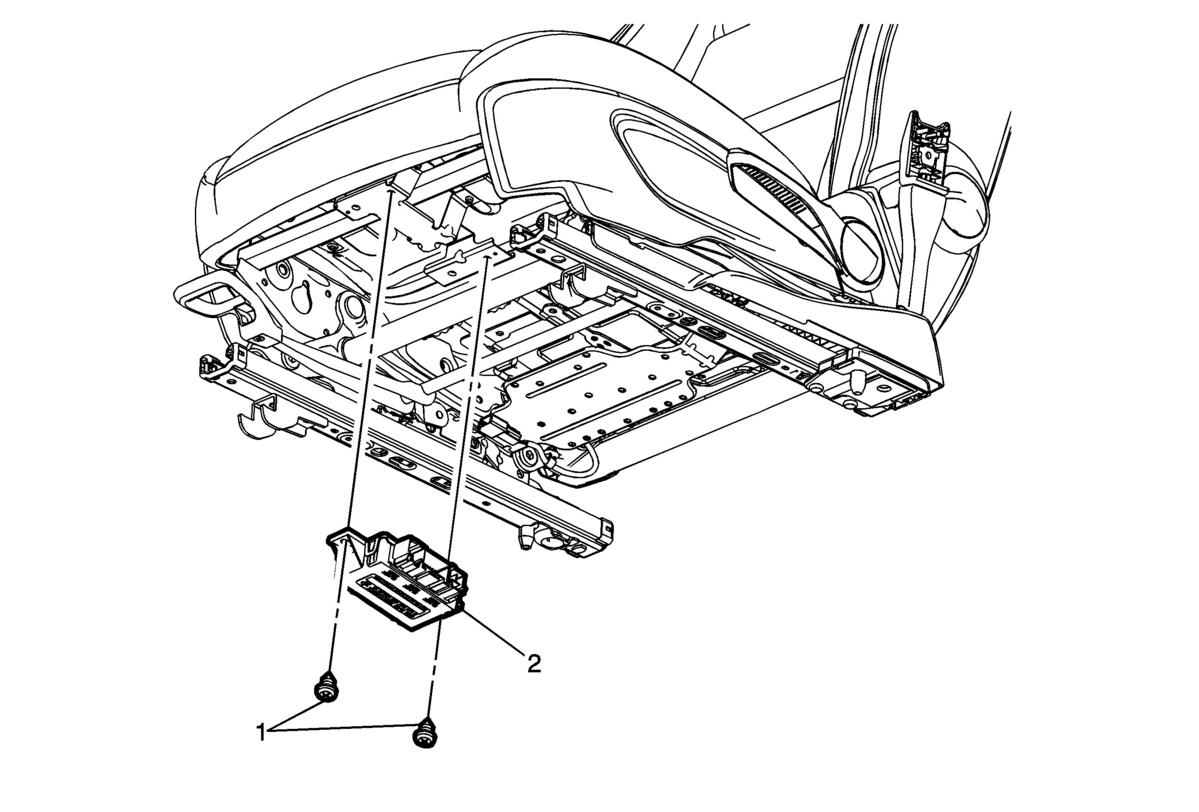

Callout	Component Name
1	Front Seat Heater Control Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Front Seat Heater Control Module Procedure Disconnect the electrical connector. Disconnect the module from the bracket, then pull downward away from the bottom of the seat. Refer to Control Module References for programming and setup information.

Callout

Component Name

Front Seat Heater Control Module Fastener (Qty: 2)

CAUTION:

Front Seat Heater Control Module

Procedure

Disconnect the electrical connector.
Disconnect the module from the bracket, then pull downward away from the bottom of the seat.
Refer to Control Module References for programming and setup information.
