Rear Side Door Window Rear Guide Replacement

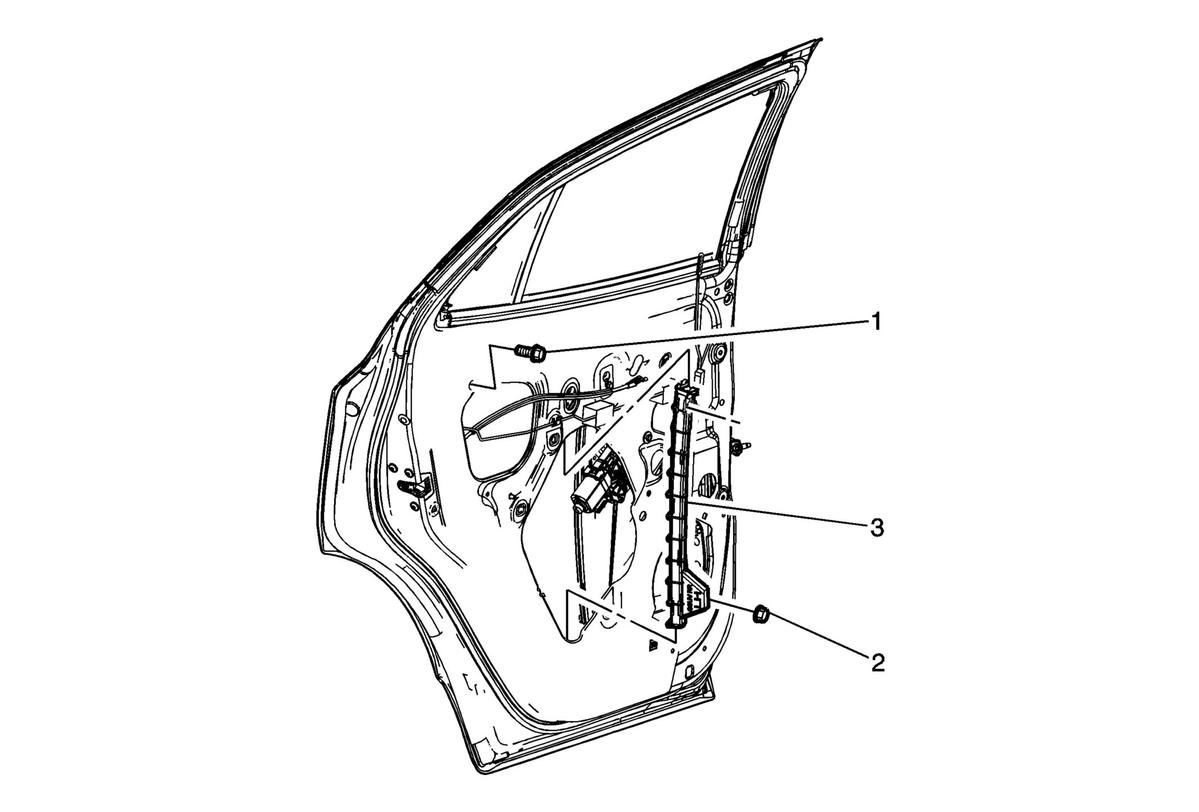

Callout	Component Name
Preliminary Procedure Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
1	Rear Side Door Window Rear Guide Bolt CAUTION: Refer to Fastener Caution . Procedure Remove the rear side door water deflector. Do Not remove the window from the vehicle, raise the window to the full up position. Pull the weatherstrip out of the inner channel guide. Tighten 9 N.m (80 lb in)
2	Rear Side Door Window Rear Guide Nut Tighten 9 N.m (80 lb in)
3	Rear Side Door Window Rear Guide Procedure Ensure that the window is in the front and rear guides. Carefully move the window downward in short slow intervals, while ensuring that the window remains in the guide. Inspect the window for proper operation before installing the trim.
