Preliminary Procedures
- Steering Gear Replacement (N40 With MNK) Steering Gear Replacement (NJ1 With MNH or MNK) Steering Gear Replacement (NJ1 With MR5) Steering Gear Replacement (N40 With M4P)
- Steering Linkage Outer Tie Rod Replacement
|

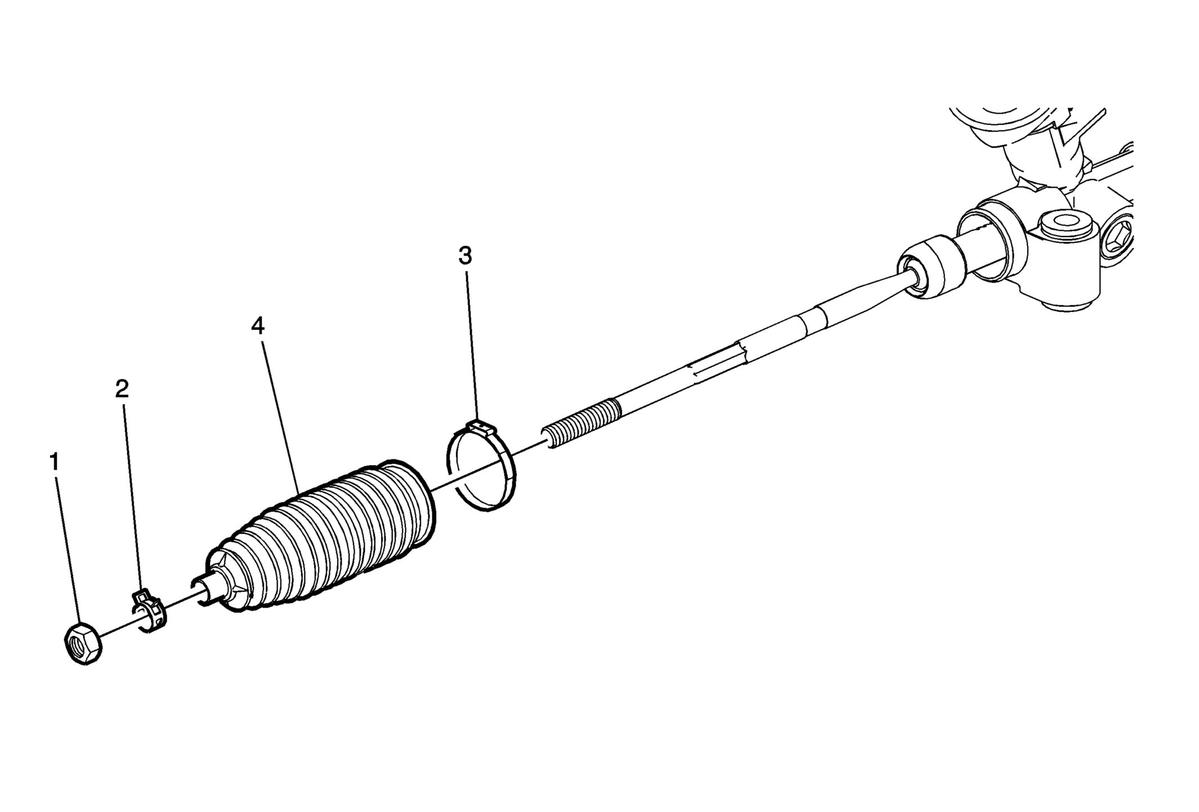

| 1 |
Steering Linkage Inner Tie Rod Nut
Procedure
Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod. |
| 2 |
Steering Gear Boot Outer Clamp |
| 3 |
Steering Gear Boot Inner Clamp Procedure
- Cut the steering gear boot inner clamp.
DISCARD the clamp.
- Use the CH-804
pliers to install a NEW steering gear boot inner clamp.
Special Tools
CH-804
Boot Clamp Pliers
Equivalent regional tools:Special Tools |
| 4 |
Steering Gear Boot Procedure
- After removing the steering gear boot, inspect the steering linkage inner tie rod for evidence of corrosion or contamination.If corrosion or contamination is evident, replace the steering gear. Steering Gear Replacement (N40 With MNK) Steering Gear Replacement (NJ1 With MNH or MNK) Steering Gear Replacement (NJ1 With MR5) Steering Gear Replacement (N40 With M4P)
- Install the steering gear boot and ensure the boot is seated in the assembly groove of the steering gear before installing the steering gear boot clamps.
|
