Video Processing Module Replacement

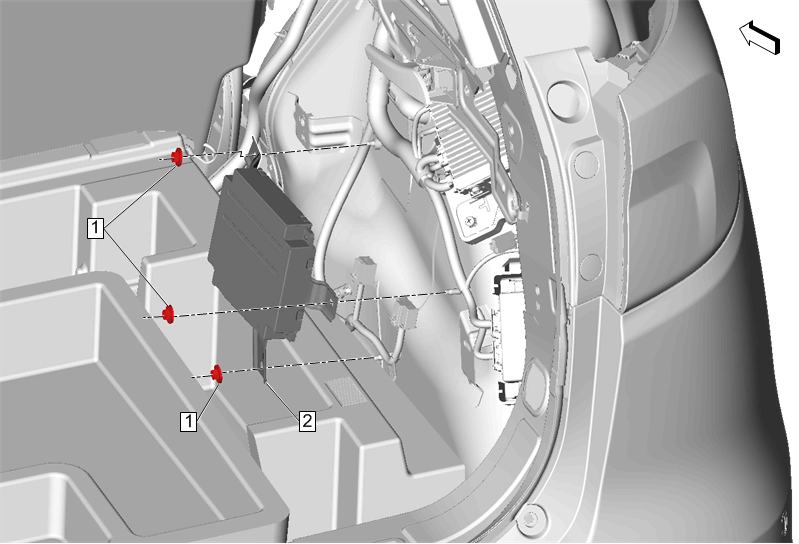

Callout	Component Name
Preliminary Procedure Quarter Lower Rear Trim Panel Replacement
1	Video Processing Module Nut [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Video Processing Module Procedure Disconnect the electrical connector. Control Module References for programming and setup information, if required.

Callout

Component Name

Video Processing Module Nut [3x]

CAUTION:

Tighten
9 N.m (80 lb in)

Video Processing Module

Procedure
