Inside Rearview Mirror Replacement

Courtesy of GENERAL MOTORS COMPANY

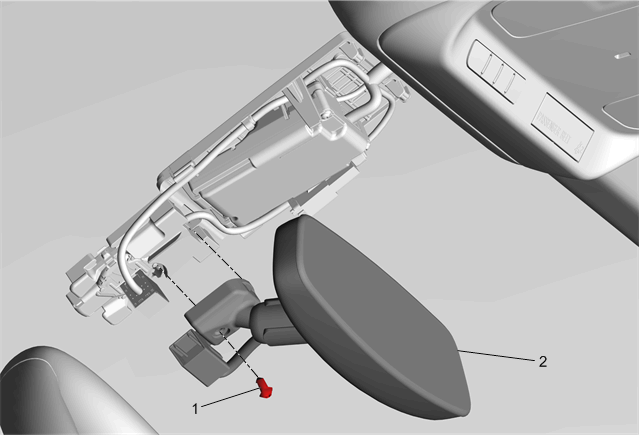

Callout	Component Name
Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Replacement
1	Inside Rearview Mirror Fastener CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Adjust the mirror to the full upward position. Loosen the set screw located at the base of the mirror. Tighten 1.8 N.m (16 lb in)
2	Inside Rearview Mirror Procedure Slide the mirror upward off of the rearview mirror button. For programming and setup procedures, if required. Control Module References

Callout

Component Name

Inside Rearview Mirror Fastener

CAUTION:

Procedure

Tighten
1.8 N.m (16 lb in)

Inside Rearview Mirror

Procedure
