Rear Camber Adjustment

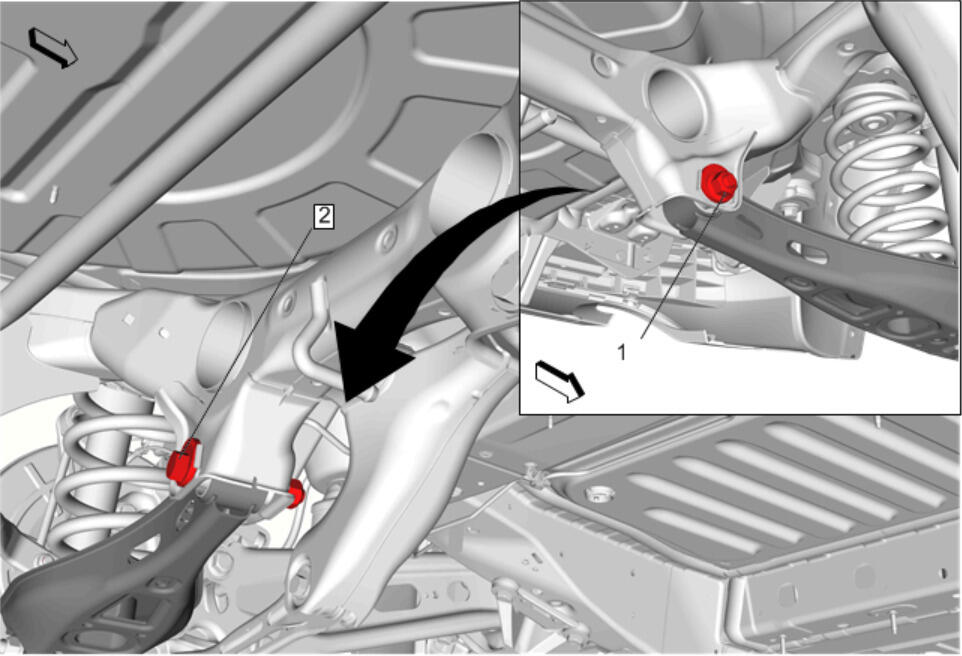

Loosen the lower control arm-to-frame nut (1) enough to allow movement.
NOTE:The frame of the vehicle is slotted, turning the cam bolt will move the camber to the desired location.
- Rotate the lower control arm-to-frame bolt (2) in the direction necessary to the correct the camber measurement.
- Snug the lower control arm-to-frame nut, do not tighten at this time.
- Re-inspect the rear camber specifications and adjust as necessary.
- Hold the bolt and tighten the lower control arm-to-frame nut. Lower Control Arm Replacement (with F45)Lower Control Arm Replacement (without F45)
- Repeat the procedure for the other rear wheel.
