Body Control Module Replacement

Callout	Component Name

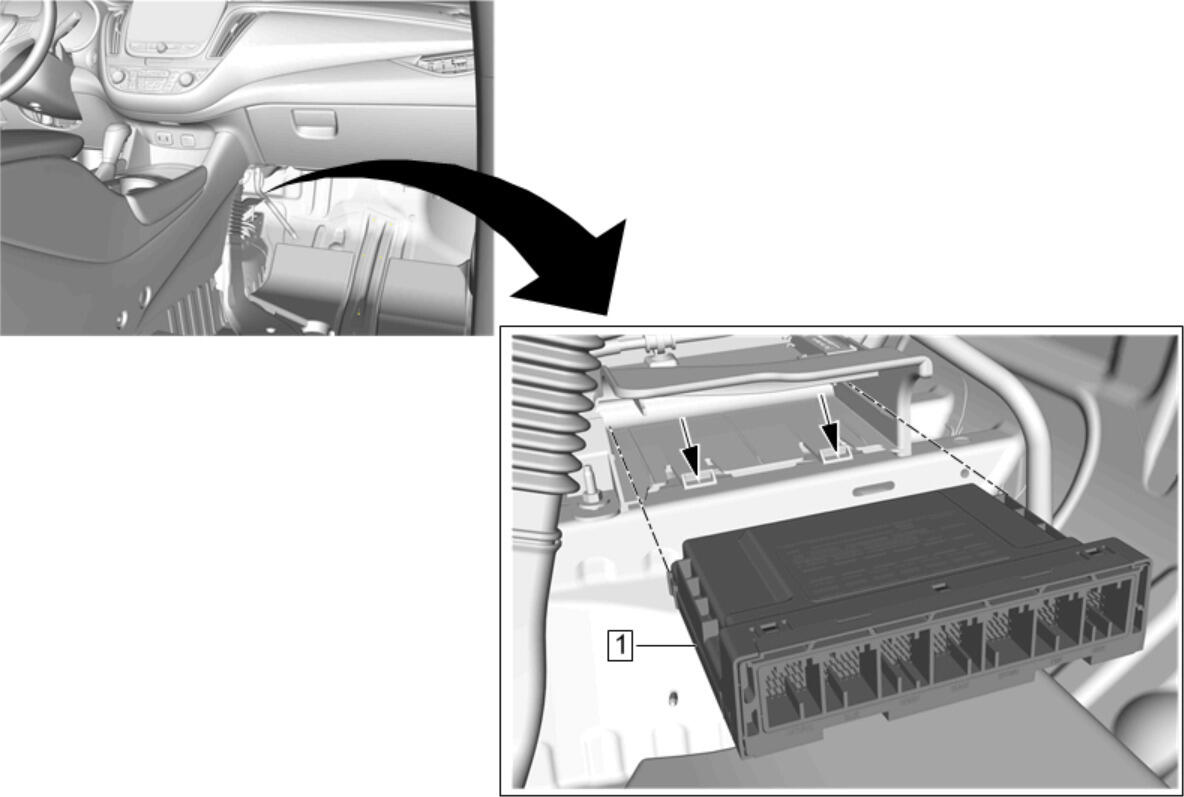

Preliminary Procedure Pull the right front carpet back to access the body control module.
1	Body Control Module Procedure Disconnect the electrical connectors. Push tabs to release the body control module from the bracket. Control Module References for programming and setup information, if required.

Callout

Component Name

Preliminary Procedure
Pull the right front carpet back to access the body control module.

Body Control Module

Procedure
