Steering Wheel Heat Control Module Replacement

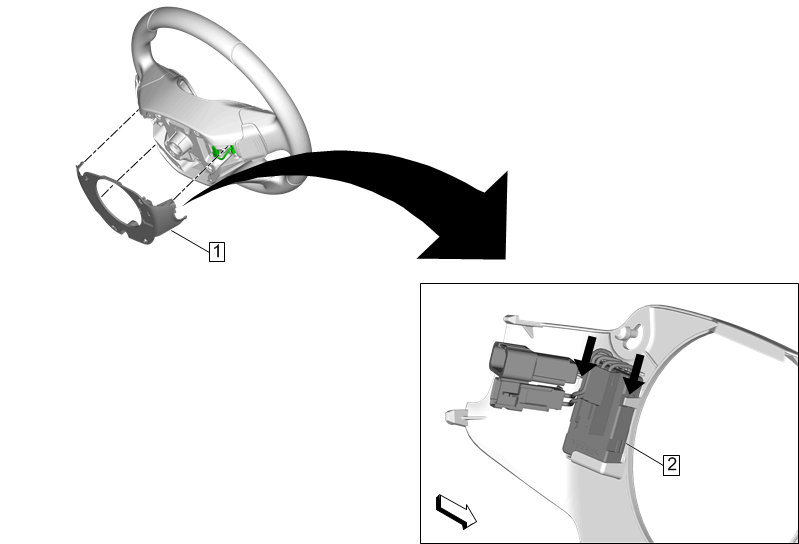

Callout	Component Name
Preliminary Procedure Steering Wheel Replacement
1	Steering Wheel Back Cover Procedure Use a flat bladed plastic tool to remove. Disconnect the electrical connectors.
2	Steering Wheel Heat Control Module Procedure Release the retaining tabs and remove the steering wheel heat control module from the steering wheel back cover.

Callout

Component Name

Preliminary Procedure
Steering Wheel Replacement

Steering Wheel Back Cover

Procedure

Use a flat bladed plastic tool to remove.
Disconnect the electrical connectors.

Steering Wheel Heat Control Module
Procedure
Release the retaining tabs and remove the steering wheel heat control module from the steering wheel back cover.
