Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
Ensure that the steering wheel is set in a straight ahead position.

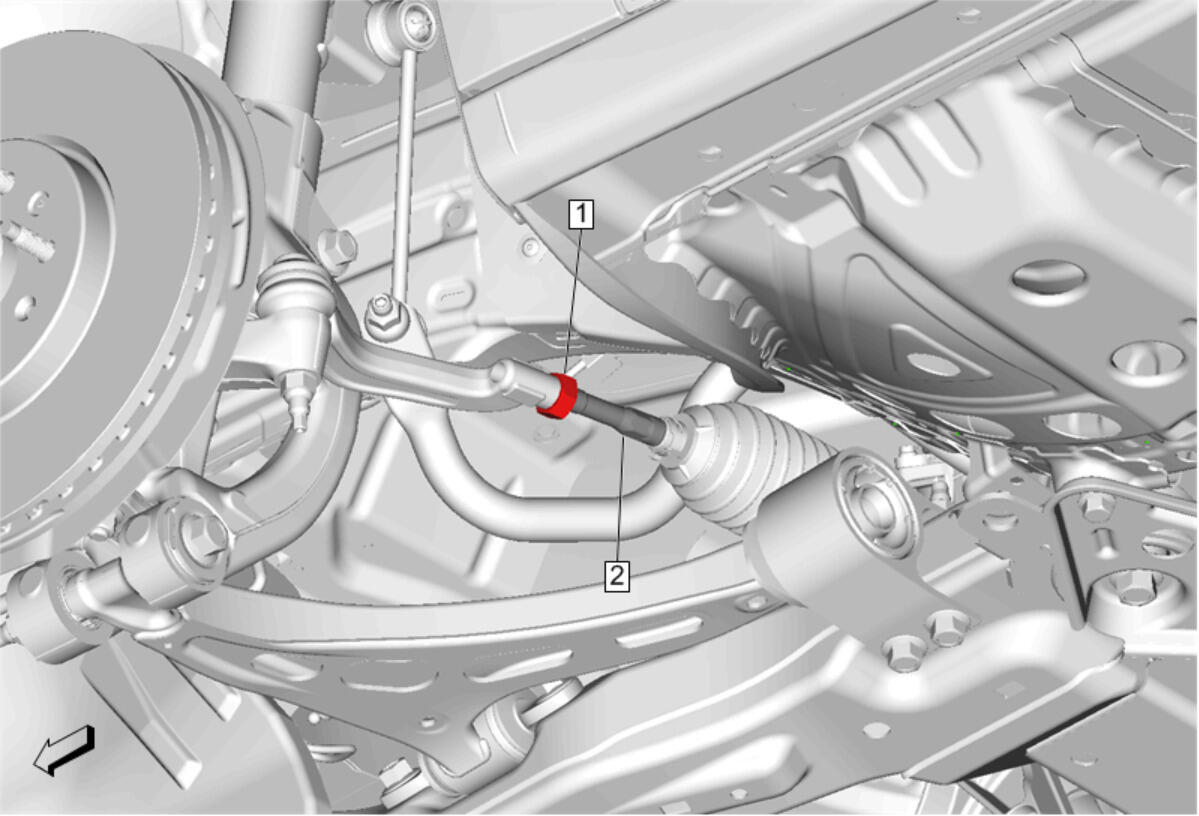

- Loosen the steering linkage inner tie rod nut (1).
- Adjust the toe to specification by turning the steering linkage inner tie rod (2). Wheel Alignment Specifications
- Tighten the steering linkage inner tie rod nut (1) to 75 N.m (55 lb ft).
- The steering angle sensor must be re-centered. Steering Wheel Angle Sensor Centering
- The steering stops must be relearned. Power Steering Control Module Calibration
CAUTION:
Refer to Fastener Caution .
