Body Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

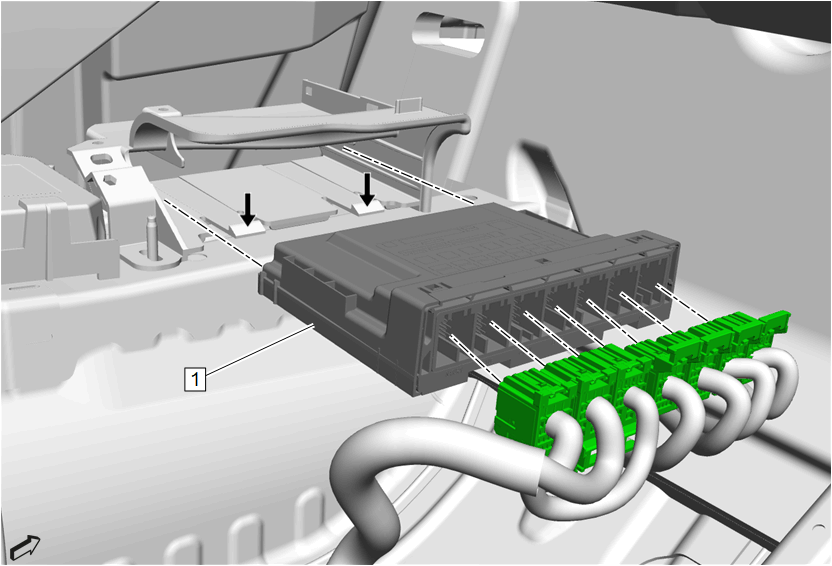

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (3.6L LGX) or BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (2.0L LTG) Pull back the front floor panel carpet on the passenger side to access the body control module.
1	Body Control Module Procedure Disconnect the electrical connectors. Unlock the retaining tabs. Run all necessary programming and setup procedures. Control Module References
