Human Machine Interface Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

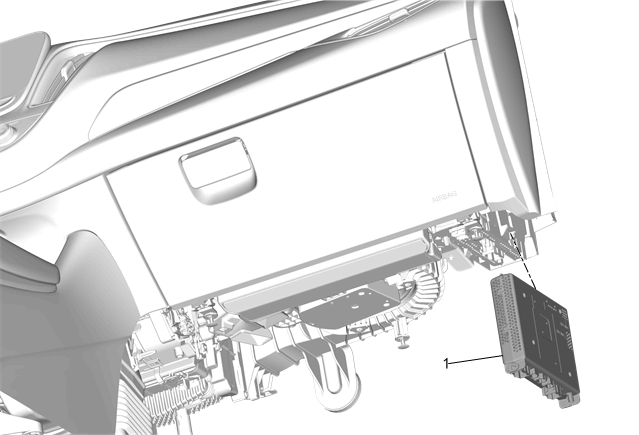

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Trim Panel Insulator Replacement
1	Human Machine Interface Control Module Procedure Disconnect the electrical connectors. Push tab to release the module from the bracket and slide downward. Refer to Control Module References for programming and set up information, if required.

Callout

Component Name

Human Machine Interface Control Module

Procedure

Disconnect the electrical connectors.
Push tab to release the module from the bracket and slide downward.
Refer to Control Module References for programming and set up information, if required.
