Wireless Charging System Module Replacement

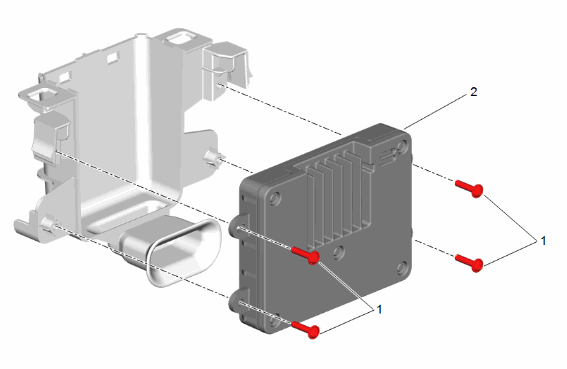

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Floor Console Housing Replacement |
|
| 1 | Wireless Charging System Module Bolt[4x]
CAUTION:
Refer to Fastener Caution . Tighten 1.2N.m (11 lb in) |
| 2 | Wireless Charging System Module |
